What is PON and How Does it Work?

Passive Optical network
Passive Optical network

Passive Optical Networking (PON) is a telecommunications technology that uses optical fibers to provide high-speed internet access, video, and voice services to subscribers. PON technology differs from traditional networking solutions in that it utilizes a passive optical network architecture that requires fewer active components, resulting in lower power consumption, decreased maintenance costs, and greater scalability.

Contents hide

Overview of PON Technology

PON technology is a cost-effective method of delivering reliable and high-performance network services over a fiber-optic network. The core concept behind PON technology is to divide the optical fibers into smaller segments, each capable of delivering data to multiple subscribers. The central office or data center sends data signals over the fiber to an optical line terminal (OLT). The OLT communicates with optical network units (ONUs) at the subscriber’s location.

Understanding PON Components

The main components of a PON system include the OLT, ONUs, fiber optic cables, splitters, and connectors. The OLT is the central device in a PON network that handles traffic from the service provider’s network and manages the distribution of that traffic across the network to the ONUs. ONUs are located at the subscriber’s premises and act as an interface between the optical fiber and the subscriber’s devices. Fiber optic cables are used to transport data from the OLT to the ONUs, while splitters split the optical signal from the OLT to multiple ONUs.

The Role of OLT and ONU in PON

The OLT is responsible for aggregating network traffic from the service provider and broadcasting it out to the ONUs. Each ONU receives the optical signal, converts it into an electrical signal and distributes it to connected devices such as computers, phones, and set-top boxes. The ONU also communicates with the OLT to request new data transmissions and to report back data quality.

PON Architecture and Deployment

PON architecture is designed to be scalable and flexible, allowing network providers to easily increase the number of subscribers without requiring extensive rewiring or hardware upgrades. PON deployments can be done in different configurations such as point-to-point (P2P), where each ONU is directly connected to the OLT, or point to multipoint (P2MP), where multiple ONUs are connected to a single OLT. In PON deployments, fiber optic cables and splitters are used to distribute data services to multiple subscribers within a fiber coverage boundary.

Advantages of PON over Traditional Networks

PON networks provide several critical advantages over traditional networking solutions, including scalability, cost-effectiveness, and energy efficiency. Compared to traditional network architectures, PON reduces power consumption by eliminating active equipment at the subscriber premises, reducing maintenance costs, and minimizing the amount of space required for network infrastructure. Additionally, PON technology is scalable and provides higher bandwidth capacity than traditional networks. This allows PON systems to support multiple services such as video, voice, and data cost-effectively.

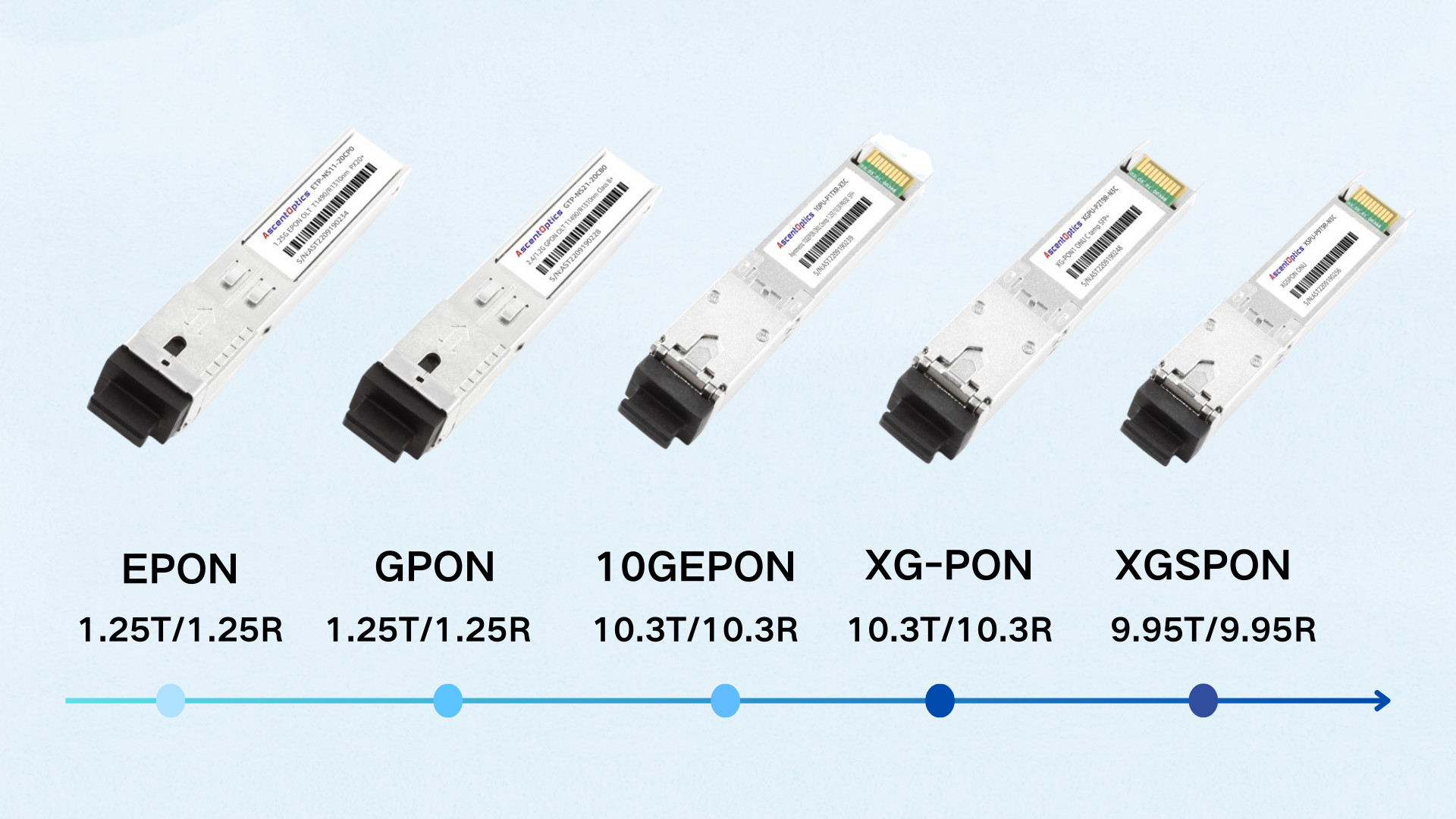

Types of PON

Type of PON Terminology Frequency Bandwidth (Downstream/Upstream) Data Rates (Downstream/Upstream) Transmission Distance
GPON ITU-T G.984 N/A 2.488 Gbps / 1.244 Gbps Up to 2.488 Gbps / Up to 1.244 Gbps Up to 20 km
XG-PON ITU-T G.987 N/A 10 Gbps / 2.5 Gbps Up to 10 Gbps / Up to 2.5 Gbps Up to 20 km
EPON IEEE 802.3ah N/A 1 Gbps / 1 Gbps Up to 1 Gbps / Up to 1 Gbps Up to 20 km

Active Optical Network (AON) vs Passive Optical Network (PON)

  • AON uses electrically powered switching equipment, like a router or a switch aggregator, to manage signal distribution and direct signals to specific customers.
  • PON does not use electrically powered switching equipment but instead uses optical splitters to separate and collect optical signals as they move through the network.

Comparison of PON Standards

Downstream Bandwidth 2.488 Gbps 10 Gbps 1 Gbps
Upstream Bandwidth 1.244 Gbps 2.5 Gbps 1 Gbps
Transmission Distance 20 km 20 km 20 km

Gigabit PON (GPON)

GPON is the most widely used PON standard today, which can transmit data at a maximum rate of 2.5 Gbps downstream and 1.25 Gbps upstream. It is used in both residential and commercial settings for applications such as internet, voice, and TV services. GPON is also backward-compatible with older PONs, so it is a popular choice for network upgrades.


10G PON or XG-PON is the next-generation PON standard that supports much higher data rates than GPON. It can transmit data at a maximum rate of 10 Gbps downstream and 2.5 Gbps upstream. XG-PON is suitable for bandwidth-intensive applications such as video streaming, online gaming, and cloud services.

Ethernet PON (EPON)

EPON is a PON standard that is based on the Ethernet protocol. It can transmit data at a maximum rate of 1 Gbps both downstream and upstream. EPON is primarily used in enterprise networks and residential areas where high-bandwidth applications are not a priority.

Active Optical Network (AON) vs Passive Optical Network (PON)

PON can be further divided into two types: AON and PON. AON uses active equipment such as repeaters and switches to amplify and direct signals. In contrast, PON uses passive devices such as splitters to divide the signal and doesn’t require any active equipment between the OLT and ONT. PON is simpler and more cost-effective, while AON is more flexible and can support longer distances.

Comparison of PON Standards

When it comes to choosing between PON standards, various factors need to be considered, such as data rate, cost, and deployment flexibility. GPON, for instance, is a mature and widely available technology suitable for most applications. XG-PON, on the other hand, is ideal for high-bandwidth demanding applications where speed is a priority. EPON is a cost-effective option for enterprise networks and residential areas. Ultimately, the choice of PON standard will depend on the network’s specific needs and requirements.

Benefits of PON

Information technology transfer by passive optical network
Information technology transfer by passive optical network

Increased Bandwidth and Faster Internet Access:

One of the primary advantages of PON technology is the increased bandwidth that it provides. Unlike traditional networks that rely on copper wires or coaxial cables, PON technology uses fiber-optic cables that offer a much higher bandwidth capacity. This means that users can enjoy faster internet speeds and more reliable connectivity, which is crucial for businesses and individuals that rely on the internet for productivity and entertainment.

Cost-effective and Efficient Network Solutions:

Another advantage of PON technology is its cost-effectiveness and efficiency. PON networks are relatively easy to install and maintain, and they require fewer active components than traditional networks. This translates to lower capital and operational costs for businesses and providers that adopt this technology. Moreover, PON networks allow for more centralized control and management, which makes it easier to monitor and troubleshoot network issues.

Improved Reliability and Security:

PON technology offers enhanced reliability and security compared to traditional networks. Because PON networks use point-to-multipoint architecture, it eliminates the need for active components like switches and routers that could fail and cause network downtime. Additionally, PON networks use encryption and authentication protocols to secure transmissions, which makes it difficult for cybercriminals to intercept or tamper with data.

Flexibility for Future Network Expansion:

Another benefit of PON technology is its flexibility for future expansion. As businesses and service providers grow, they can easily scale up their PON networks to accommodate new users or services. Moreover, PON networks support multiple applications over a single fiber-optic cable, which means that users can enjoy additional services like voice, video, and data without needing to install separate cables.

Environmentally Friendly and Energy Efficient:

PON technology is also environmentally friendly and energy efficient. Because PON networks use passive splitters instead of active components, they consume less power than traditional networks. Additionally, PON networks are free from electromagnetic interference and radio frequency emissions, which makes them safer for humans and the environment.

Different Types of PON Components

Passive Optical Network with Testing and Measuring Reflectometer

A PON system includes several components that work together to deliver high-speed internet services to end-users. These components include Optical Line Terminal (OLT), Optical Network Unit (ONU), Optical Splitters, Optical Fiber Cabling, and Wavelength Division Multiplexing (WDM).

OLT (Optical Line Terminal)

Optical Line Terminal (OLT) is a critical component of the PON system. It is the primary interface between the service provider’s network and the customer’s network. The OLT is typically situated at the central office or data center of the service provider. The role of the OLT is to convert the electrical signals from the service provider’s network into optical signals that can travel through the fiber-optic cabling of the PON network. It also aggregates the traffic from multiple ONUs and sends it to the service provider’s network.

ONU (Optical Network Unit)

Optical Network Unit (ONU) is an essential part of the PON system. It is located at the customer’s premises, and its primary role is to terminate the optical fiber cabling that comes from the OLT. ONUs typically include a modem that converts optical signals into electrical signals for devices to understand. ONUs can also act as a router, switch or bridge for connecting various devices.

Optical Splitters

Optical splitters are another crucial component of the PON system. They allow the optical signals coming from the OLT to be split into multiple streams and sent to multiple ONUs. Optical splitters use a technique called “passive splitting,” meaning they do not require an external power source. They are available in different configurations such as 1:2, 1:4, 1:8, and 1:16, splitting one signal into two, four, eight, and sixteen signals, respectively.

Optical Fiber Cabling

The optical fiber cabling of the PON system is a vital component. It is specially designed so that it can carry high-speed data signals over long distances without significant signal attenuation. Typically, it is a single-mode fiber with a low attenuation coefficient that can carry signals over long distances. The standard 9/125μm fiber is used in most PON installations.

Wavelength Division Multiplexing (WDM)

Wavelength Division Multiplexing (WDM) is a technology that utilizes different wavelengths to carry multiple signals. It is a technique used in the PON system to increase its capacity by combining different wavelengths onto a single fiber optic line. WDM is used to carry data from multiple ONUs to the OLT, and each ONU uses a different wavelength to transmit its signals. By using WDM, a single fiber can simultaneously carry signals from multiple ONUs, which significantly increases the efficiency of the PON system.

How PON Benefits Service Providers and End Users

Fiber Optic Network Connectivity

Improved Internet Services and Connectivity

PON technology offers improved internet services and connectivity to end-users. PON allows service providers to deliver symmetrical speeds of up to 10Gbps to multiple users simultaneously. PON technology supports higher bandwidths with low latency, providing end-users with faster internet speeds and reduced latency, which results in better internet quality for users. Additionally, PON technology provides a scalable and flexible platform for delivering various broadband services such as video-on-demand, voice over IP, and IPTV. This results in a better user experience, enabling service providers to offer a range of high-quality services to the end-users.

Enhanced Network Management and Maintenance

PON technology offers enhanced network management and maintenance for service providers. PON technology is designed in a way that minimizes network downtime, making it easier for service providers to diagnose, identify, and rectify errors. PON technology is also highly scalable, making it easier for service providers to add or remove users from the network. Additionally, PON technology allows for centralized network management, enabling service providers to streamline network management and maintenance activities.

Cost Savings for Service Providers and End Users

PON technology offers cost savings for service providers and end-users. PON technology uses passive components, eliminating the need for active electronics, which results in lower capital and operational costs for service providers. Additionally, PON technology supports a point-to-multipoint architecture, allowing service providers to share bandwidth across multiple users, resulting in a lower cost per user. For end-users, PON provides a cost-effective solution for high-speed internet and communication services, enabling them to benefit from the scalability and flexibility of PON technology.

Future-Proof Solution for Increasing Bandwidth Demand

PON technology offers a future-proof solution for increasing bandwidth demand. PON technology supports the delivery of high-speed internet services and communication applications such as video, voice, and data, which are increasingly demanded by end-users. PON technology is continuously evolving, providing faster speeds and increased capacity, enabling service providers to meet the growing demand for bandwidth-intensive applications. Additionally, PON technology is flexible, which means that service providers can adapt to changing user demands, providing a seamless experience for end-users.

Easy Migration from Legacy Networks to PON

PON technology offers an easy migration path from legacy networks to PON. PON technology can be deployed incrementally, allowing service providers to upgrade their existing networks without disrupting services to end-users. PON technology is compatible with legacy networks, meaning that service providers can gradually migrate from traditional copper-based networks to optical fiber-based networks, providing a seamless transition for end-users. PON technology also provides backward compatibility with FTTH/C networks, allowing service providers to leverage their existing infrastructure investment to deliver high-speed services to end-users.

Frequently Asked Questions

Passive optical network unit closeup

Q: What is the difference between PON and active optical network?

A: PON is a passive network, which means it does not require any active components such as amplifiers or repeaters. In contrast, active optical networks include active components to boost the signal and extend the reach of the network.

Q: What is GPON?

A: GPON, or Gigabit Passive Optical Network, is a specific type of PON technology that supports higher data rates and increased bandwidth compared to earlier PON standards. It is widely used for fiber-to-the-home (FTTH) applications.

Q: What is upstream and downstream in PON?

A: Upstream refers to the data transmitted from the end user to the central office, while downstream refers to the data transmitted from the central office to the end user. In a PON, the upstream data is usually transmitted at a lower rate than the downstream data.

Q: What is EPON?

A: EPON, or Ethernet Passive Optical Network, is a variation of PON that uses Ethernet protocols for data transmission. It is commonly used for broadband network access and supports both voice and data services.

Q: What is the role of an optical distribution network (ODN) in PON?

A: The optical distribution network is responsible for distributing the optical signal from the central office to multiple end users. It typically includes fiber optic splitters, which split the signal into multiple streams to reach different ONTs.

Q: How does PON reduce the amount of fiber optic cable required?

A: PON reduces the amount of fiber optic cable required by utilizing passive optical splitters to share a single optical fiber among multiple users. This eliminates the need for separate dedicated fibers for each user.

Q: Can existing PON infrastructure be upgraded to support higher data rates?

A: Yes, existing PON infrastructure can be upgraded to support higher data rates by replacing the ONTs and upgrading the central office equipment. This allows for increased capacity and improved network performance.

Q: What is the role of an Internet Service Provider (ISP) in a PON?

A: An ISP is responsible for providing internet connectivity to end users through the PON. They manage the network infrastructure, deliver the data services, and handle customer support and billing.
