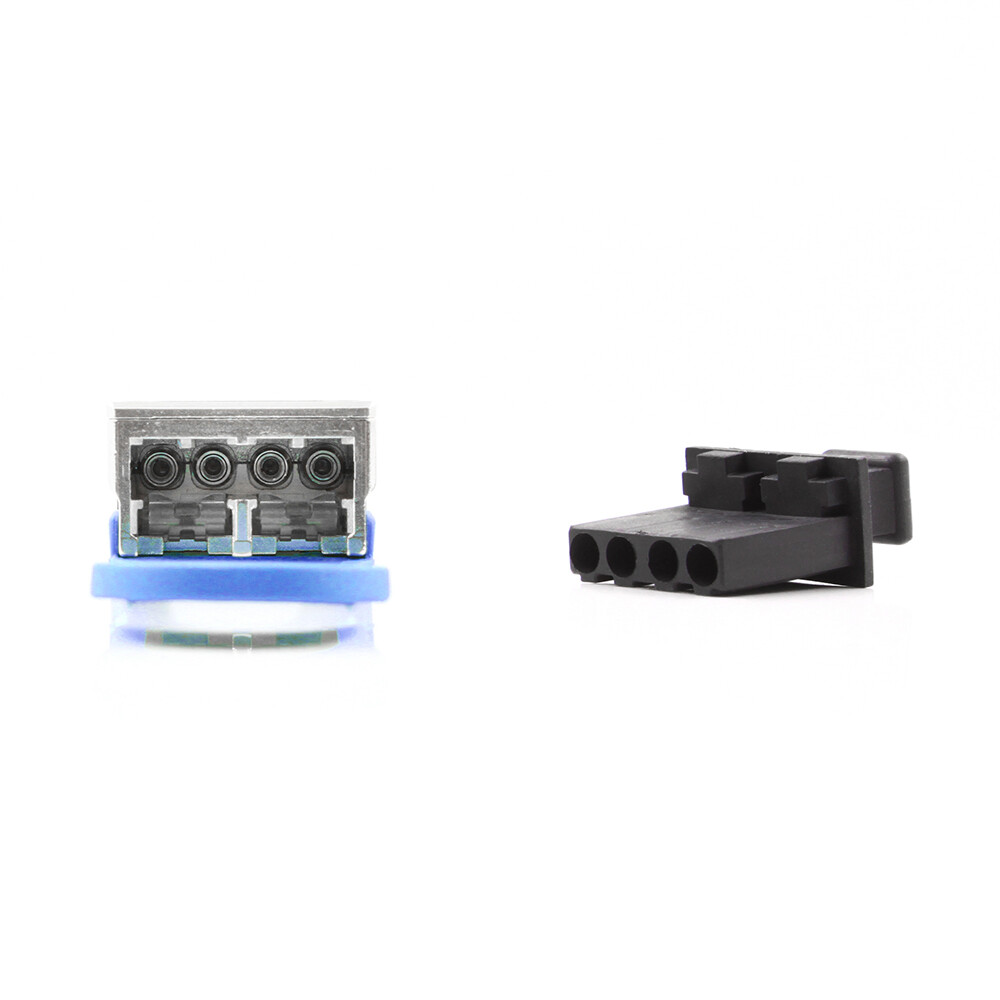

800GbE OSFP 2x400G LR4 10KM Dual duplex LC SMF Transceivers
800GbE OSFP 2x400G LR4 10KM Dual duplex LC SMF Transceivers
800GbE OSFP 2x400G LR4 10KM Dual duplex LC SMF Transceivers
800GbE OSFP 2x400G LR4 10KM Dual duplex LC SMF Transceivers
800GbE OSFP 2x400G LR4 10KM Dual duplex LC SMF Transceivers
800GbE OSFP 2x400G LR4 10KM Dual duplex LC SMF Transceivers

800G OSFP112

800GbE OSFP 2x400G LR4 10KM Dual duplex LC SMF Transceivers

Ascent Optics’ OSFP transceiver module is designed for use in 800 Gigabit Ethernet links over 10km single mode fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel. This transceiver consists of two transmitter/receiver units, with each operating on a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1300nm. The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with an 8-channels modulator driver, 8 externally modulated lasers and two optical multiplexers. On the receiver path, two optical de-multiplexers are coupled to 8 photodiodes and two 4-channel TIA arrays, along with the PAM4 re-timer. The electrical interface of the module is compliant with the 800GAUI-8 interface as defined by IEEE 802.3ck, and compliant with OSFP MSA.

Country Of Origin : China

Delivery Time : Consult the account manager

Dimensions (LxWxH ) : 144*22.88*13

Net weight : 0.058kg

Certificate:

Certificate Certificate Certificate Certificate Certificate Certificate Certificate

P/N: O12-8002C31-10CX

Add to Quote
Product Details Key Features Application Downloads（PDF）
Get quotes Back ProductsList
Product Details
Part No. O12-8002C31-10CX Form Factor OSFP
Data Rate 2x400GbE Distance 10KM
Wavelength CWDM4 Operation Temperature 0 to 70°C (32 to 158°F)
Connector Dual LC Duplex Voltage 3.3V
Cable Type SMF DDM Yes
Transmitter Type CWDM EML Receiver Type PIN
TX Power -2.7~5.1dBm Receiver Sensitivity <-9dBm
Protocols IEE802.3ck, OSFP MSA, CMIS Rev 5.0 Warranty 3 years
Key Features
Supports 850Gbps Single 3.3V Power Supply Up to 10km over SMF with KP4 FEC supported at the Host side Dual duplex LC connector 8x106.25Gbps (PAM4) electrical interface PIN and TIA array on the receiver side Power dissipation < 16W Case temperature range: 0°C to 70°C(commercial) Safety Certification: TUV/UL/FDA*1 RoHS Compliant
Application
1x800G Ethernet 2x400G Ethernet 2x200G Ethernet
Downloads（PDF）

Please contact our sales representative !
