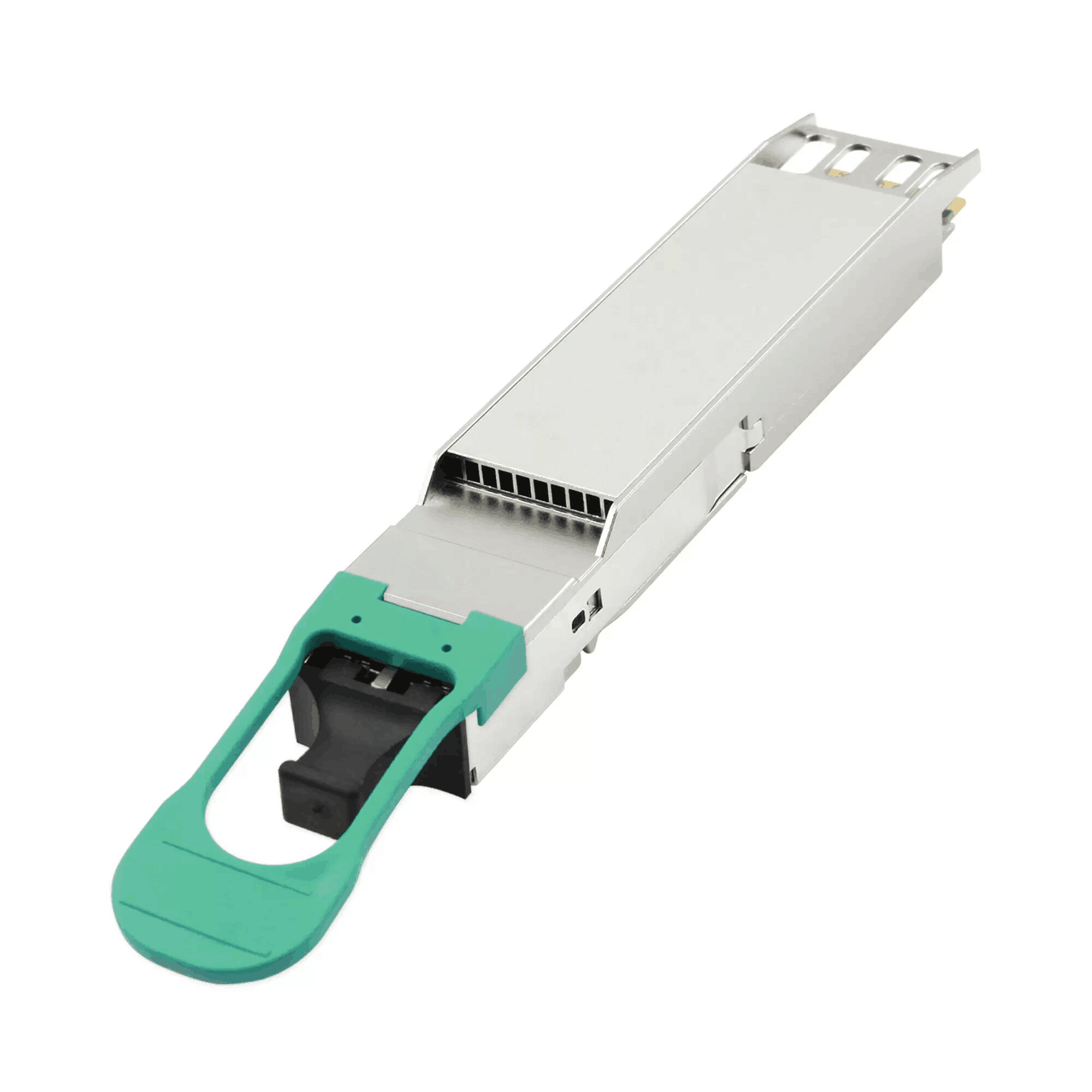

400G OSFP 2x200G FR4 2KM Dual Duplex LC SMF Transceivers

400G OSFP

400G OSFP 2x200G FR4 2KM Dual Duplex LC SMF Transceivers

Ascent Optics’ OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 2Km single mode fiber. The module has 8 independent electrical input/output channels operating up to 53.125Gbps per channel. This transceiver consists of two transmitter/receiver units, with each operating on a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1300nm. The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with an 8-channel modulator driver, 8 externally modulated lasers and two optical multiplexers. On the receiver path, two optical de-multiplexers are coupled to 8 photodiodes and two 4-channel TIA arrays, along with the PAM4 re-timer. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with OSFP MSA.

Country Of Origin : China

Delivery Time : Consult the account manager

Dimensions (LxWxH ) : 144*22.88*13

Net weight : 0.058kg

Certificate:

P/N: O56-4002C31-02CL

Add to Quote

Product Details

Part No.	O56-4002C31-02CL	Cable Type	SMF
Data Rate	2x 200G 400GbE	Operation Temperature	0 to 70°C (32 to 158°F)
Voltage	3.3V	Protocols	400G Ethernet, Data Center Interconnect
DDM	Yes	Form Factor	OSFP
Distance	2KM	Wavelength	2x CWDM4

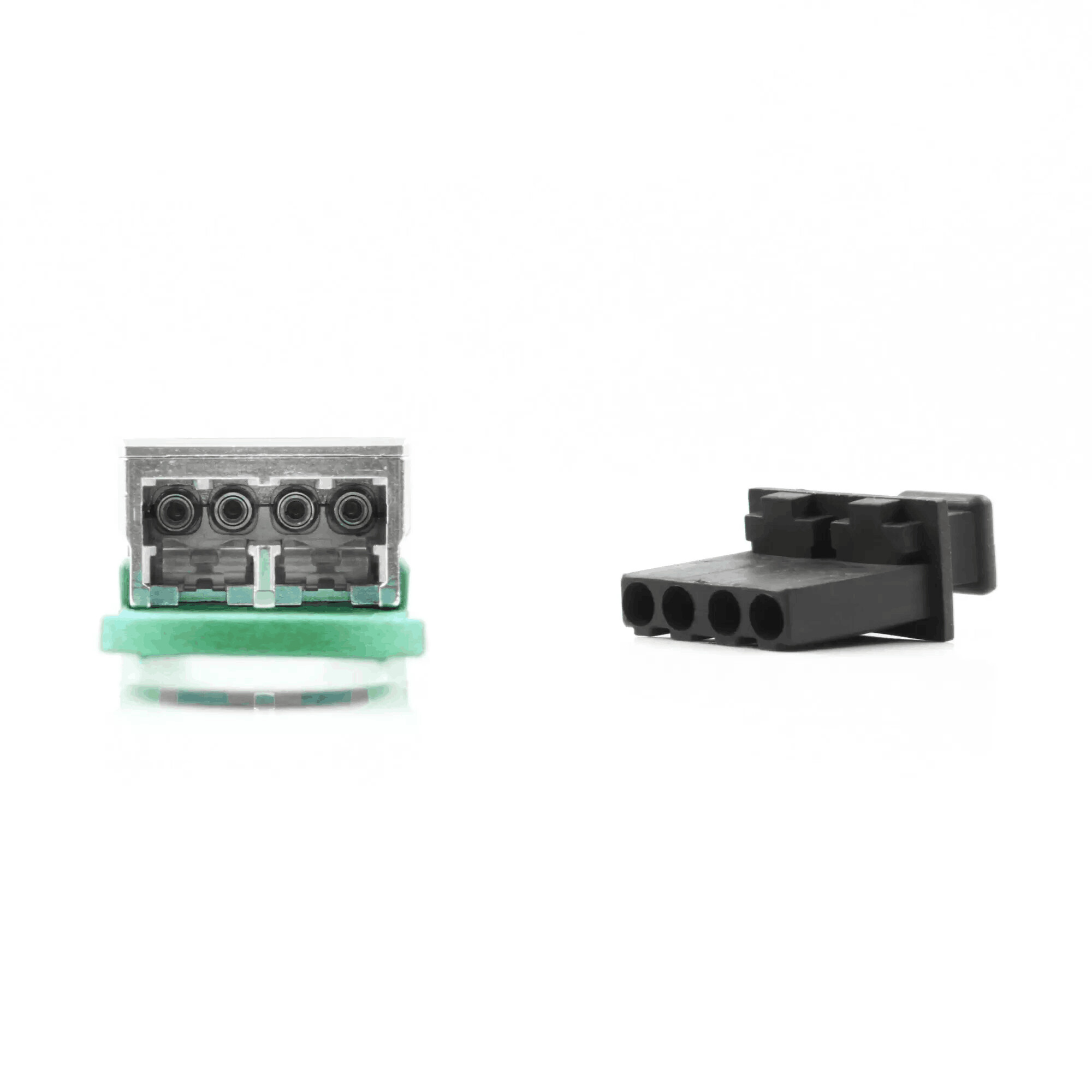

Connector	Dual Duplex LC	Transmitter Type	2x CWDM4 EML
Receiver Type	PIN	Warranty	3 years
TX Power	-4.2~+4.7dBm	Receiver Sensitivity	< -6.0dBm

Key Features

Supports 425Gbps Single 3.3V Power Supply Up to 2km over SMF with KP4 FEC supported at the Host side Dual Duplex LC connector Triple Rate operation: 53.125Gbps (PAM4), 25.78125Gbps (NRZ) OSFP MSA compliant Cooled EML CWDM transmitter PIN and TIA array on the receiver side Power dissipation < 12W Case temperature range: 0°C to 70°C(commercial) Safety Certification: TUV/UL/FDA*1 RoHS Compliant

Application

2x200G DC applications 200GBase-FR4
