400G OSFP DR4 (E 8x 50G-PAM4) 500M MPO-12 SMF Transceivers
400G OSFP DR4 (E 8x 50G-PAM4) 500M MPO-12 SMF Transceivers
400G OSFP DR4 (E 8x 50G-PAM4) 500M MPO-12 SMF Transceivers
400G OSFP DR4 (E 8x 50G-PAM4) 500M MPO-12 SMF Transceivers
400G OSFP DR4 (E 8x 50G-PAM4) 500M MPO-12 SMF Transceivers
400G OSFP DR4 (E 8x 50G-PAM4) 500M MPO-12 SMF Transceivers

400G OSFP

400G OSFP DR4 (E 8x 50G-PAM4) 500M MPO-12 SMF Transceivers

Ascent Optics’ OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 500m single mode fiber. The module has 8 independent electrical input/output channels at host side with data rate 53.125Gbps per channel. The integrated GearBox in module converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 400Gbp/s. The four transmitter/receiver units operate on 1310nm wavelengths. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with OSFP MSA.

Country Of Origin : China

Delivery Time : Consult the account manager

Dimensions (LxWxH ) : 144*22.88*13

Net weight : 0.058kg

Certificate:

Certificate Certificate Certificate Certificate Certificate Certificate Certificate

P/N: OSP-400S431-5HCM

Add to Quote
Product Details Key Features Application Downloads（PDF）
Get quotes Back ProductsList
Product Details
Part No. OSP-400S431-5HCM Form Factor OSFP
Data Rate 4×100G 400GbE Distance 500M
Wavelength 1310nm Operation Temperature 0 to 70°C (32 to 158°F)
Connector MTP/MPO-12 Voltage 3.3V
Cable Type SMF DDM Yes
Transmitter Type 1310nm EML Receiver Type PIN
TX Power -2.9~+4.0dBm Receiver Sensitivity < -4.4dBm
Protocols 400G Ethernet, Data Center Interconnect Warranty 3 years
Key Features
Supports 425Gbps Up to 500m over SMF MPO-12 connector 8x53.125GBd (PAM4) electrical interface OSFP MSA compliant PIN and TIA array on the receiver side Power dissipation < 10W Case temperature range: 0°C to 70°C(commercial) Safety Certification: TUV/UL/FDA*1 RoHS Compliant
Application
Data center networks 4 x 100G-DR4 applications
Downloads（PDF）

Please contact our sales representative !

Related Products

400G OSFP SR8 850nm 100M MPO-16 MMF Transceivers

400G OSFP SR8 850nm 100M MPO-16 MMF Transceivers
400G OSFP SR4 (E 4x 100G-PAM4) MPO-12 MMF Flat Top Transceivers

400G OSFP SR4 (E 4x 100G-PAM4) MPO-12 MMF Flat Top Transceivers
400G OSFP Silicon Photonic PSM8 300M MPO-16 SMF Transceivers

400G OSFP Silicon Photonic PSM8 300M MPO-16 SMF Transceivers
400G OSFP DR4 (E 4x 100G-PAM4) 500M MPO-12 SMF Flat Top Transceivers

400G OSFP DR4 (E 4x 100G-PAM4) 500M MPO-12 SMF Flat Top Transceivers
400G OSFP 4x100G DR4+ / FR (XDR4) 2KM MPO-12 SMF Transceivers

400G OSFP 4x100G DR4+ / FR (XDR4) 2KM MPO-12 SMF Transceivers

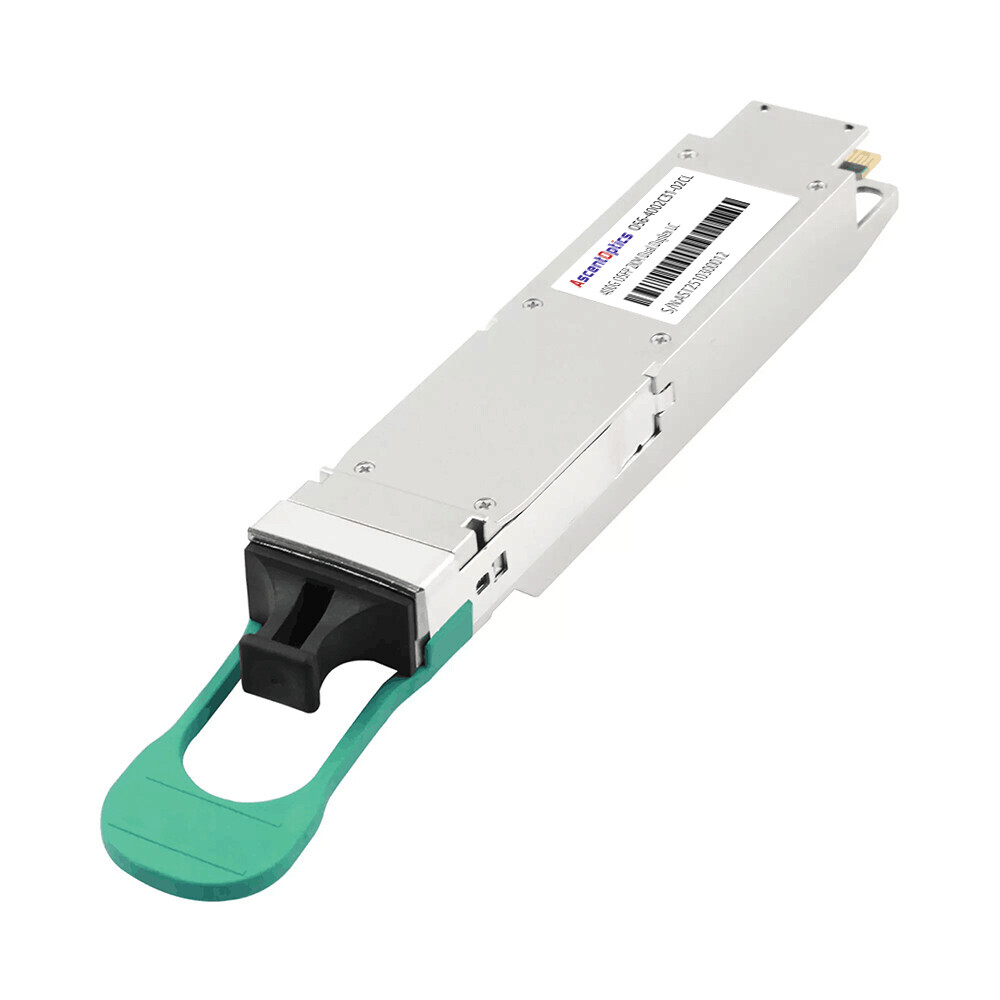

400G OSFP 2x200G FR4 2KM Dual CS SMF Transceivers
