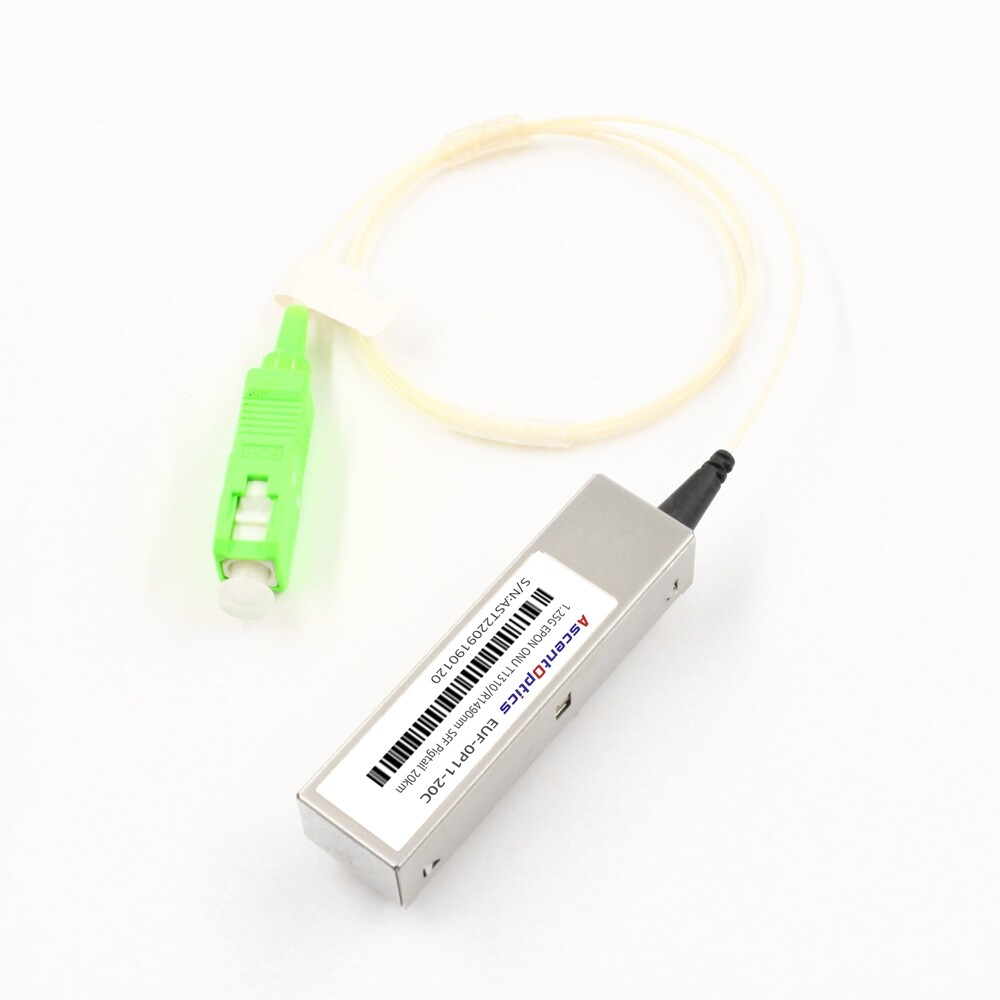

1.25G EPON ONU SFF 1310nm TX / 1490nm RX PX20+ SC Pigtail Transceivers

EPON Transceivers

1.25G EPON ONU SFF 1310nm TX / 1490nm RX PX20+ SC Pigtail Transceivers

AscentOptics’ EUP-0P11-20C defines excellence in Ethernet Passive Optical Networks (EPON) for FTTx (FTTH) deployments. With a Point to Multi-Point (P2MP) topology, EPON revolutionizes optical networking. Compliant with IEEE 802.3ah and SFP Multi-Source Agreement (MSA) SFF-8074i/8472, it ensures seamless integration. Operating on a single +3.3V power supply, it offers efficiency and convenience. Featuring LVPECL inputs and outputs, LVTTL signal detection output, and compliance with Telcordia GR-468-CORE, it guarantees reliable performance. Boasting a 1310nm Burst Mode Transmitter and 1490nm Continuous Mode Receiver, it supports a typical data rate of 1.25Gbps and reaches up to 20km. Complying with 1000Base-PX20+, it meets industry standards for superior connectivity. With optional SC/PC or SC/APC Pigtail, it offers versatility to suit diverse requirements. Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class2 and FDA regulations, it ensures safety and reliability in various environments.

Country Of Origin : China

Delivery Time : Consult the account manager

Dimensions (LxWxH ) : 49*13.45*9.4

Net weight : 0.022kg

Certificate:

P/N: EUF-0P11-20C

Add to Quote

Product Details

Part No.	EUF-0P11-20C	Form Factor	SFF
Data Rate	1.25T/1.25R	ODN Class	PX20+
Wavelength	1310T/1490R	Operation Temperature	0 to 70°C (32 to 158°F)
Connector	SC Pigtail	Voltage	3.3v
Cable Type	SMF	DDM	Yes
Transmitter Type	1310nm DFB	Receiver Type	PIN
TX Power	0~+4.0dBm	Receiver Sensitivity	< -27.0dBm
Protocols	MSA Compliant	Warranty	3 years

Key Features

BiDi SFF Single Mode Transceiver SC/PC or SC/APC Pigtail is optional Compliant with SFF MSA-2000 And SFF-8472 V10.3 Single +3.3 Power Supply LVPECL Differential Inputs and Outputs And LVTTL Signal Detection Output Complies with Telcordia (Bell core) GR-468-CORE 1310 nm Burst Mode Transmitter and 1490 nm Continuous Mode Receiver Typical data rate 1.25 Gbps Maximal reach 20km Comply with 1000Base-PX20+

Application

GEPON ONU For P2MP Application

Downloads（PDF）

Datasheet
