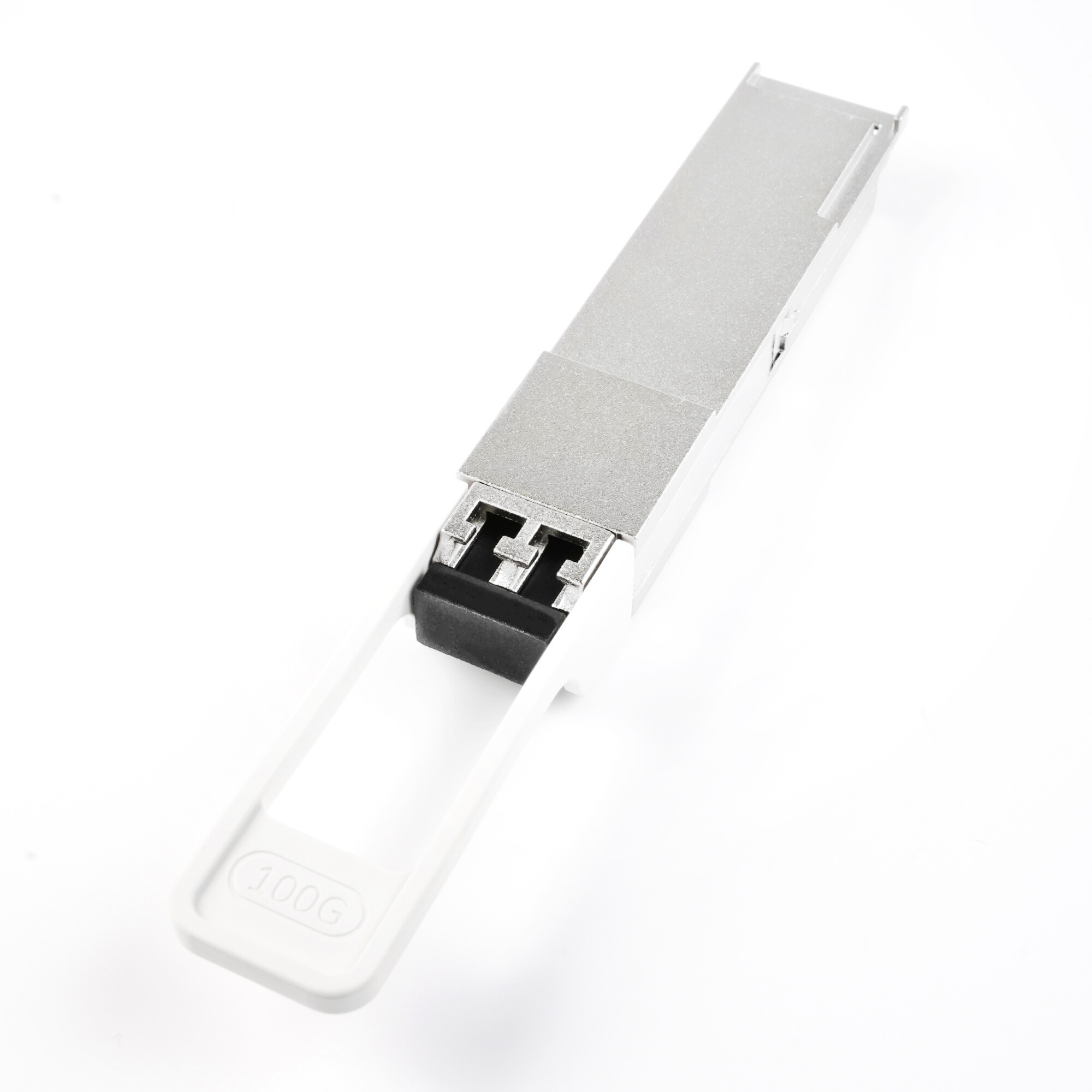

100G QSFP28 1CH C-Band DWDM Single Lambda 80km Transceivers

100G QSFP28 Single Lambda

100G QSFP28 1CH C-Band DWDM Single Lambda 80km Transceivers

Ascent Optics’ QSP-100DCxx-80CL series single mode transceiver module is designed for use in duplex optical data communications. This module is designed for single mode optical fiber and operates at a data rate of 100Gbps at the nominal DWDM wavelength from 1528.77nm to 1565.50nm as specified by the ITU-T. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to 1 channel of 100Gbps (PAM4) optical signal, and also can convert 1 channel of 100Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface of the module is compliant with the OIF CEI-28G-VSR and QSFP28 MSA. It is designed to deploy in the DWDM networking equipment in metropolitan access and core networks.

Country Of Origin : China

Delivery Time : Consult the account manager

Dimensions (LxWxH ) : 120.77*18.5*13.2

Net weight : 0.043kg

Certificate:

P/N: QSP-100DCxx-80CL

Add to Quote

Product Details

Part No.	QSP-100DCxx-80CL	Form Factor	QSFP28
Data Rate	100G/ps	Distance	80km
Wavelength	DWDM CHxx	Operation Temperature	0 to 70°C (32 to 158°F)

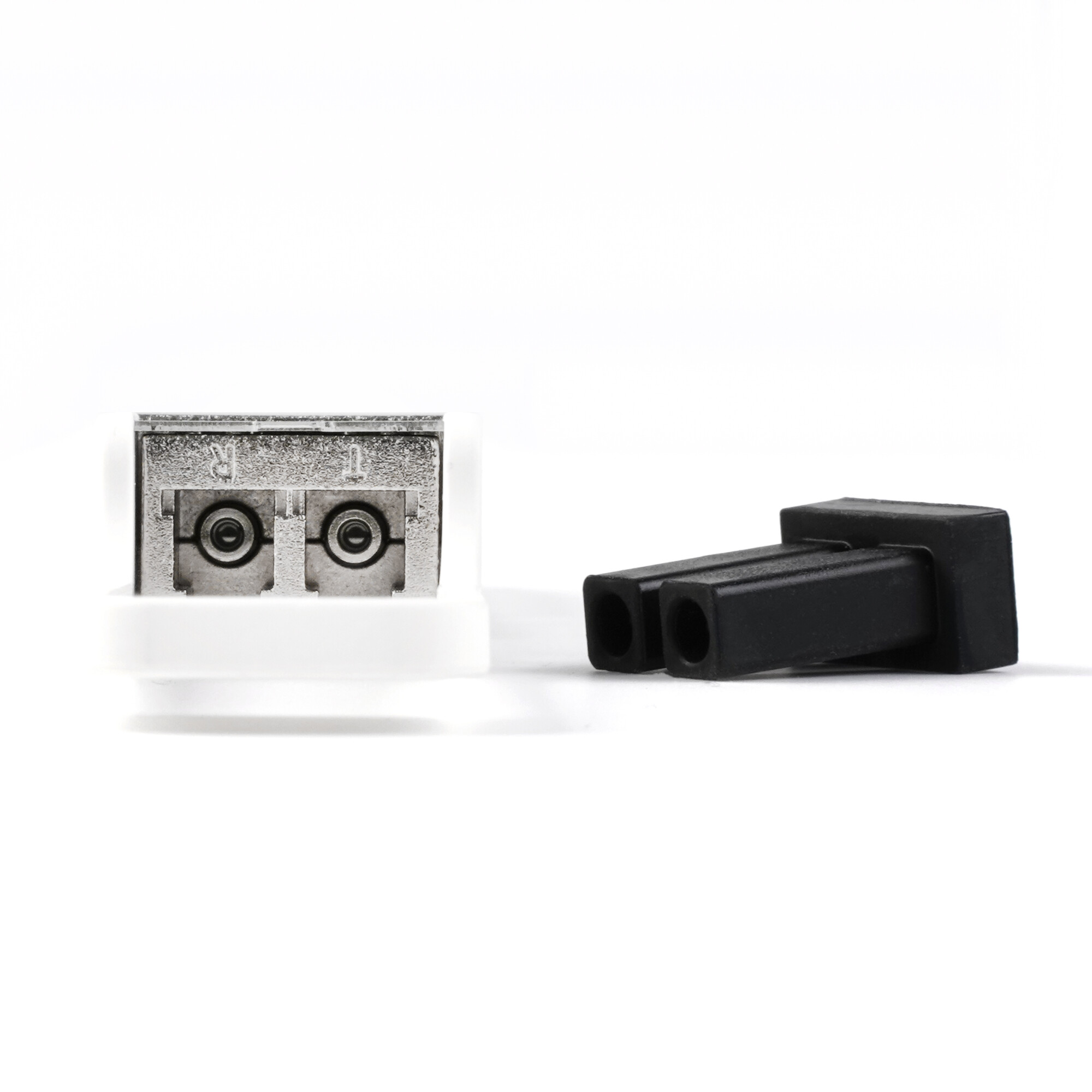

Connector	Duplex LC	Voltage	3.3V
Cable Type	SMF	DDM	Yes
Transmitter Type	EML	Receiver Type	PIN
TX Power	-7.0~+4.0dBm	Receiver Sensitivity	< -11.0dBm
Protocols	QSFP28 MSA	Warranty	3 years

Key Features

Supports 100Gbps Available in all C-Band Wavelengths on the 100GHz DWDM ITU Grid Single 3.3V Power Supply Power Dissipation < 5.5W 80km reach over SMF with EDFA&DCM (dispersion compensation modules) QSFP28 MSA Compliant SFF-8636 Rev 2.10a Compliant 4x25G Electrical Interface LC Duplex Connector Commercial Case Temperature Range of 0°C to 70°C I2C Interface with Integrated Digital Diagnostic Monitoring Safety Certification: TUV/UL/FDA RoHS Compliant

Application

100G Amplified DWDM Networks Data Center Interconnects

Downloads（PDF）

Datasheet
