The constant changes in global data networks have greatly created a demand for a new generation of high quality robust, performant and self scalable connectivity features. Of the many technologies that have been created to accomplish these requirements, the QSFP ( Quad Small Form Factor Pluggable) has become a key component in the contemporary optical and Ethernet network systems. This article seeks to bring out the technical details of the QSFP technology, the importance it holds in the network environment, and most importantly the features that it provides in ensuring the transfer of data without any challenges, and at a greater level of speed than before. By deconstructing the technological basics as well as the use cases of the QSFP technology, this article describes its increasing significance within the frameworks of modern optical networks.

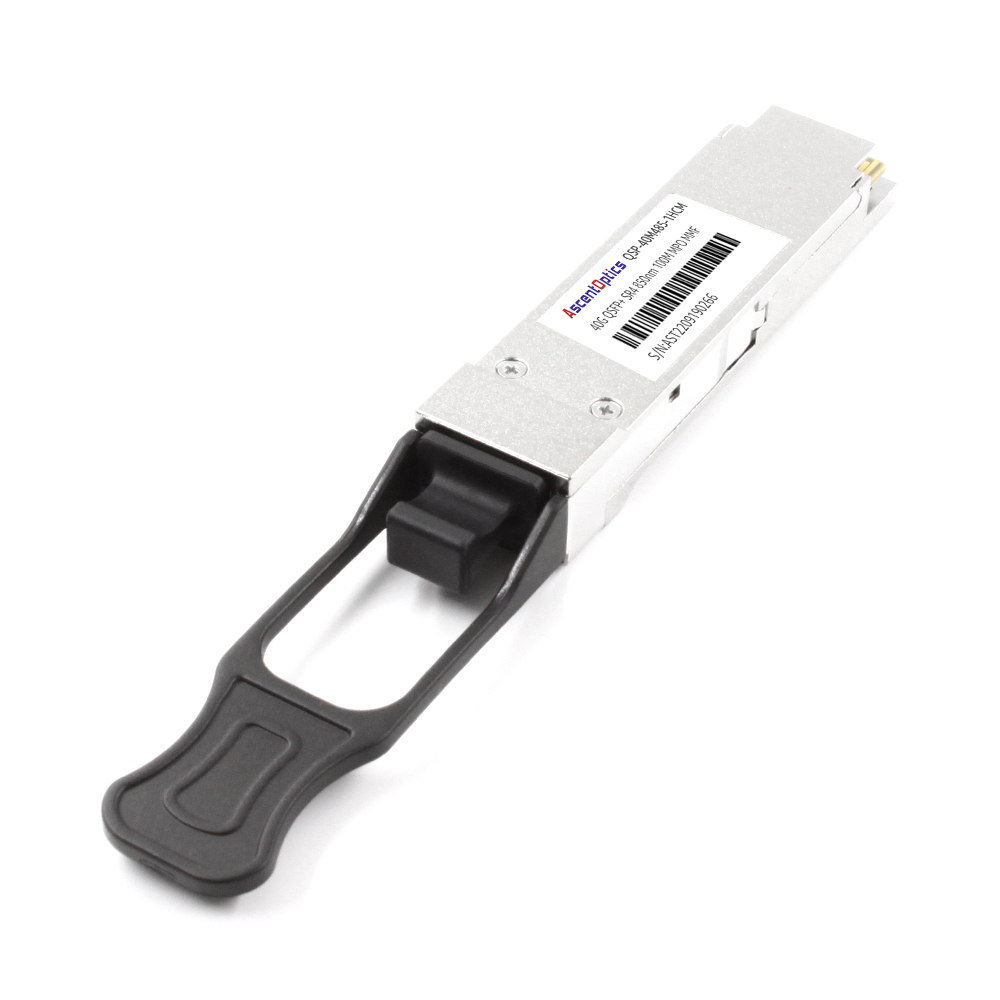

The short form ‘QSFP’ can be translated to mean Quad Small Form-factor Pluggable. This component is classified as a miniaturized, hot-pluggable transceiver used in data communication applications. The word “Quad” shows that there are four channels of data in one module which means its readiness for high wired data environments.
The module is described as a high-density cable solution which is necessary to work with dense networking environments. Depending on the version can deal with varying speeds such as 4 Gbps to 400 Gbps, for instance: offers users the cambit to deal with varying speeds such as 4 Gbps to 400 Gbps, for example: Cisco QSFP+, Cisco QSFP28, Cisco QSFP-DD. Each module can achieve a speed of up to 100 Gbps on each of four parallel lanes as is the case with the more advanced version of the module, known as the QSFP-DD.

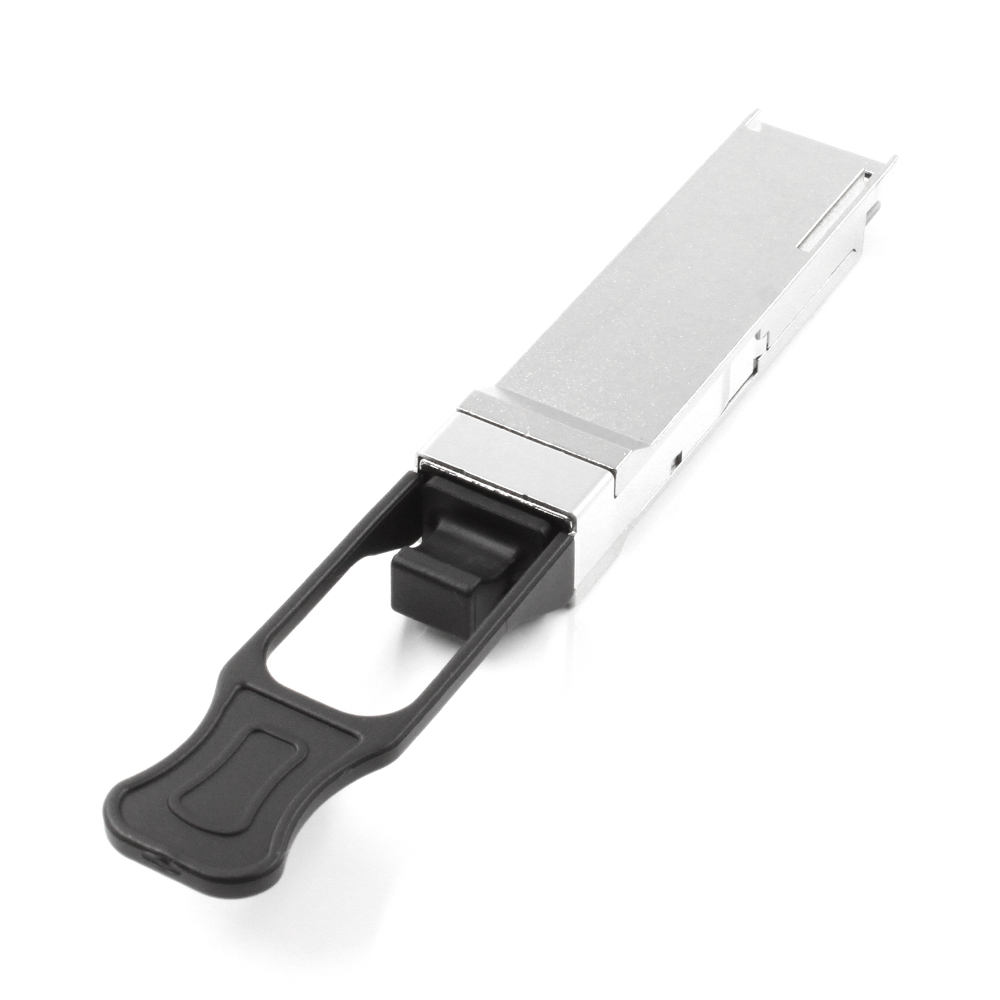

Key Features:
Distance Support: Depending on the kind of transceiver and the cabling, QSFP modules can transfer data over a distance of as short as 10 meters using copper Direct Attach Cables (DAC) and more than 10 kilometers using optical fiber cables.
Applications:
QSFP modules are important components in data centers, high-performance computers and telecom industries. They facilitate data aggregation, edge computing, scalable networking, and support Ethernet and InfiniBand, SONET or SDH (Synchronous Optical Networks) technologies.
These technical nuances underline the QSFP’s critical role in optimizing high-speed networks where performance and efficiency are primary concerns.
Modern high-speed networks has possibly exceeded and advanced significantly with the transceiver technology revolution, with QSFP modules single handedly meeting and even exceeding the needs required of them in high-speed networks, and serving, the integration of business telecommunications systems. Important considerations include:
Data Rates: While enabling progressive systems, QSFP modules allow transfer of data from 4 Gbps (QSFP) to 400 Gbps (QDPP-DD) thereby allowing both old and new systems to still function.
Form Factor: Measuring around 18.35 mm x 69.60 mm x 8.5 mm, the small module improves port density which in turn preserves space in networking racks.

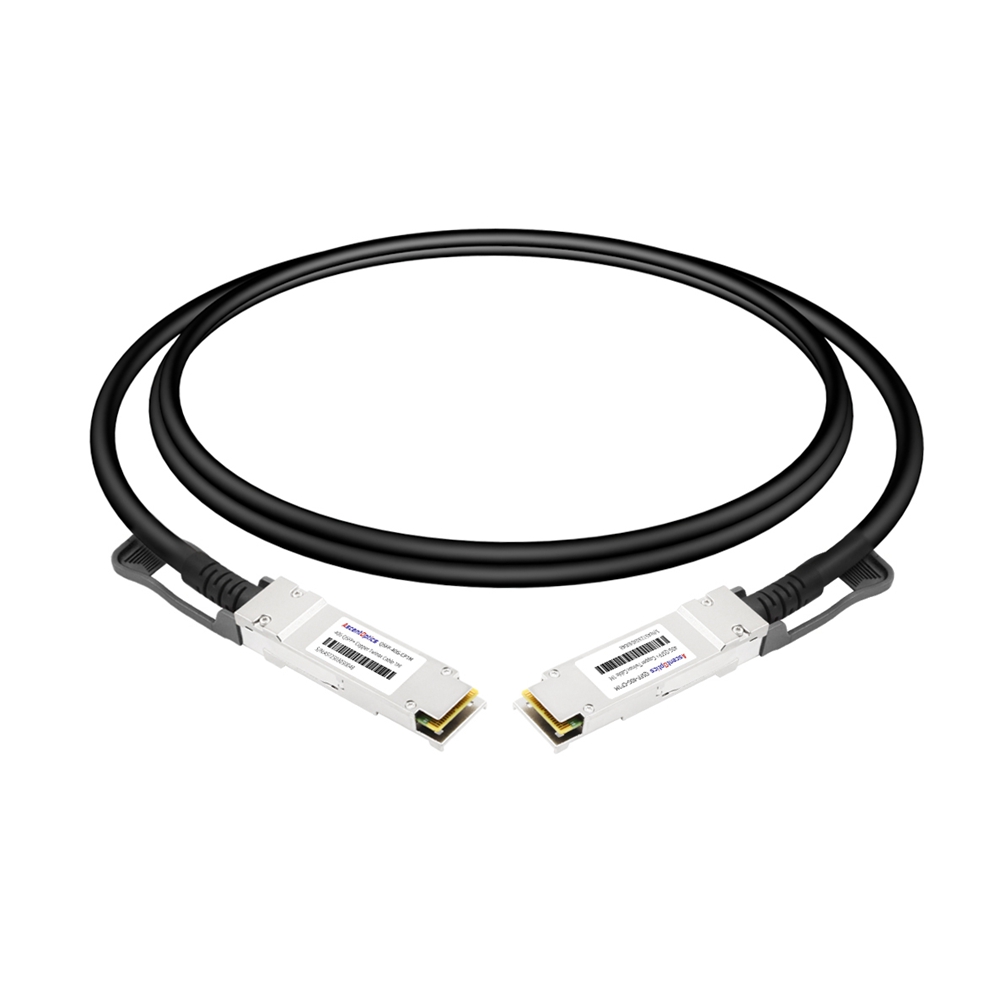

Optical and Copper Interfaces: These modules are designed in a versatile fashion as they come in both optical and copper configurations, and they can be utilized for short-range (SR) or long-range (LR) applications. Models that are popular are QSFP-SR4 (100 meters over a multimode fiber) and QSFP-LR4 (10 km over a single mode fiber).
Power Consumption: In terms of energy use, network design is made efficient in that each module consumes between 1.5 W and 5 W, depending on the transmission range and the built-in features of the module.
Compatibility: Besides other interfaces, QSFP modules are backward compatible with other SFP-based systems by the use of adapters allowing newer devices to be plugged into older devices.
QSFP modules are important in applications where the bandwidth need is high. For instance:
Data centers: Provide a way to accelerate data movement between servers and top-of-rack (ToR) and end-of-row (EoR) architectures Systems.
Telecom networks: Support high data throughput across, large distances with low latency.
High-Performance Computing (HPC): Allow computation clusters to communicate effectively with low latency and high bandwidth.
These parameters and scenarios demonstrate how QSFP modules are suitable for a broad spectrum of applications for modern networking demands.
Shape: SFP architecture is best suited for smaller modules with a channel capacity of one, whereas for QSFP architecture, it has a much greater size with the greatest channel capacity of four, which helps increase data throughput vastly.
Bandwidth: Depending on the version, SFP ranges up to 10 Gbps while QSFP goes a tremendous 100 Gbps or sometimes much more.
General Usage: SFP is widely used for less data requirement application, single channel connection, however, QSFP is aimed for high bandwidth usage with data centers and high computing devices.
Total Power Consumption: QSFP modules usually need more power then SPP modules since they possess greater features and overall capacity.
Taking into account the mentioned factors, it enables SFP to be used for simpler low speed connections while for higher speed, high density network environments, QSFP is ideal.
There is a significant difference in the upper limit as QSFP can reach a data transfer rate of 400 Gbps if need be while SFP modules max at 1 to 10 Gbps. In high speed networking, requirements like this do shine QSFP modules.
Compared to several SFP modules, one single QSFP can possess numerous data lanes in a single module, this makes room on the network switches enabling higher port density.
With the increased demand for high data transmission applications,QSFP has indeed brought much flexibility owing to the fact that it has the capability to support up to four channels of data stream and reception all within one transceiver.
A single module of QSFP will give a lot of power in terms of Gbps/ as it uses more power on a per unit basis meaning that it can deliver in places where energy is a concern as they give out strong and consistent power enabling high demand applications.
QSFP modules makes it easy for its users to use the evolving networking standards such as Ethernet, InfiniBand and specially Fiber Channel which provide more options to be incorporated with other systems_more easier.
By merging various channels and reducing physical connections, QSFP modules lower the overall cost of ownership for high bandwidth’s QSFP servers.
These factors highlight the technical superiority of QSFP modules in environments where speed, scalability, and efficiency are critical.
When it comes to SFP vs QSFP, the difference lies in the networking requirements such as port density, distance, or bandwidth requirements. Slender form factor pluggables is more appropriate for low bandwidth range of 10Gbit to 1Gbit as well as targets edge switching and low data throughput industries. The equipment is fitted for setups that only need single channel reasonably short links and or communication.
In contrast, Dell’s QSFP (Quad Small Form-factor Pluggable) units work in high speed environments facilitating multiple channels that enable throughput ranging between 40 and 400 Gbps. This type of transceiver is great for use in data centers or high volume servers and large backbone networks that require higher bandwidth and high growth potential. Furthermore, when comparing them with SFP modules smaller and thinner network setups, QSFP units allow the other modules to increase in port density and efficiency. This is paramount for modern advanced networks where efficiency is of the utmost importance.
At the end of the day though the policy must match with the envisaged profile of the flows within the network as well as the expected levels of growth to the infrastructure over time. For low budget and simpler configurations SFP modules are all that is needed, but for large and high speed networks QSFP units offer several benefits.
QSFP28 transceivers are high-end optical modules that facilitate faster data transfer rates in a contemporary network. With a carrying capacity of 100Gbps, they are frequently used in telecommunications, enterprise networks, as well as in data centers. The table below gives a succinct summary of the specifications of the common QSFP types of transceivers as well as their applications:
Distance Support:
QSFP-DD is able to achieve up to 400Gbps transfer rates effectively making it compatible with advanced data centre requirements and the needs of high performance computing settings. It has an eight-lane structure which increases the lanes of the traditional QSFP by two lanes, wherein each of the eight is ready to transmit up to 50Gbps with the assistance of PAM4 modulation. This development in technology maintains the bandwidth capability through making the older version of modules usable, whilst also increasing capabilities significantly. Furthermore, The form factor allows for efficient scaling within hyperscale environments, particularly with communications such as 400G Ethernet and InfiniBand, while extensively with 400G Ethernet and InfiniBand.
Interfacing SFP modules require one to use interfacing cables which are; fiber optic cables and electrical cables. For fibber optic cables, there are two types of interfacing cables, Single Mode Fiber (SMF) which is designed for long-range applications and MMF that is used in for short-distance applications. When selecting the type of fiber cable, it is important to consider the performance characteristics, application, and distance the link is to be made. Also, hybrid QSFP modules are interoperable with compliant fiber optic cables which meet the most important standards like IEEE.
The application of QSFP modules stands out in facilitating a dramatic increase in the bandwidth capacity of a network. Depending on the type of the module and the standards it supports, the units can transfer data up to a rate of up to 40Gbps (QSFP+) and 400Gbps (QSFP-DD). Given the high data transfer rates, it is no surprise that modules of this type excel within the high pool performance computer, data networks, and enterprise networks spectrums.
Key Data for QSFP Modules:
QSPF+, 40 Gbps- With 10 Gbps for each channel across 4 lanes, can run on multimode fiber (up to 140m) or singlemode fiber (up to 10 km).
QSPF28, 100Gbps- This plugs into a 25 Gbps channel and allows multimode fiber for a 100m reach and single mode for up to 10km.
QSFP-DD, 400Gbps- By utilizing 8 lanes, 50Gbps per lane transmission can be accomplished with PAM4 modulation supporting up to a 10 km reach with single mode fiber.
These metrics allow for networks and their architectures to be scalable and ever ready to withstand the ‘data storms’ of tomorrow. With appropriate incorporation of QSPF modules companies can achieve near perfection in reliability of their networks as well as ensure their networks stay highly performant.
Contemporary data centers require ideal port density in order to increase scalability and overall efficiency. A high density of ports results in network equipment taking less space, the cabling being easier and less complex and the space within the rack being efficiently utilized. The data below emphasizes the efficiency the other types of QSFP modules bring with them:
QSFP28: These modules have a capacity of 100Gbps which enables the use of 36 ports in a 1U single switch with the use of a Compact Form Factor. When this structure is setup, the cumulative bandwidth equals to 3.6Tbps which is great for medium and large size deployments.
QSFP-DD: These modules have been catered to 400G Ethernet which means they can be able to handle having 32 ports per 1U switch. This leads to the cumulative bandwidth of 12.8Tbps and makes it easier for modern data centers to be able to run high-performance applications.
Comparison to Legacy Systems:
SFP+ Modules at their best only provide 48 ports when using traditional 10G Ethernet systems, these ports can be used on a single 1U switch, therefore leading to an aggregate bandwidth of only 480Gbps.
When looking to upgrade to QSFP modules, the need for upgrading switch units arises in order to fix the 27x gap in bandwidth.
Because of the integration of the higher-density QSFP modules, there now exists the ability to hold a larger bandwidth while still being within inside a physical space meaning that the global increase in network traffic can be handled while equal amounts of energy and cost is used.
By combining more than one lane of data into a single QSFP, one is able to significantly increase the transmission speed as each lane operates at either 25Gbps or 50Gbps. For gsmplex 25$Ms are quick-s 100G and nearly quadruple the capacity of new modem technology stacks with 4×25 Gbps, the new QSFP28 modules are 400 Gbps. Such a system enables multifold improvements in data rates compared to legacy systems, and is what makes QSFP technology perfect for contemporary and emerging networking requirements.
The aspect that is of utmost importance, when trying to optimize your network, is the data rate. Considering this aspect is essential when purchasing QSFP modules as exampled by how a system supporting a data rate of 100Gbps would require a QSFP28 modules whereas a 400 Gbps capable system would be better served by using a QSFPDD module. It is crucial to depict the requirements of the client with the capabilities of the module in terms of the switches or the routers.
QSFP modules are expected to be compatible with the existing network infrastructure. While installing them it is important to keep an eye on which type of fiber (single-mode or multi-mode) and connector standards are being supported by the transceiver. Also, investigating the manufacturer’s compatibility matrix ensures that the module will work with the designated hardware and exposes the chances of incompatibility to a minimum.
Thus, by effectively matching the compatability and data rate with the preexisting infrastructure, one can achieve enhanced network performance without compromising themselves against the future bandwidth requirements.
In order to guarantee the use of correct QSFP modules, it is crucial to grasp the optical transmission and cabling requirements for these accessories. There are codes: SR (Short Range), LR (Long Range) and ER (Extended Range) that most QSFP modules seem to comply to that mark different output distances. For example:
QSFP-40G-SR4 is suitable for multi mode fibre (MMF) with a distance of approximately 100m through a OM3 cable.
QSFP-40G-LR4 enables the use of SMF to improve the distance of transmission to around 10km.
QSFP-100G-ER4 enables long range connection lengths of around 40 km using SMF.
Furthermore, the type of cable matching the transceiver must also attach to it. The common types of cable for the multimode fibers are either OM3 or OM4 cabling whilst OS2 cable is more suited for the single mode fibers over longer ranges with a weaker signal. Also, ensure that connector types are compatible. For example, single mode applications use the LC Duplex connector, whilst multi mode solutions deploy MTP/MPO connectors. The combination of these factors prevents the need for extra infrastructure updates because the signal will be transmitted properly.
In this way, the specified optical standards together with the recommended cabling configuration will be able to reduce the risk of improper installation of data wires which may lead to increased signal loss due to attenuation, signal dispersion or high latency by optimizing the data throughput.
It is important to establish the minimum bandwidth, distance and future growth requirements of a network environment before proceeding with the evaluation of the same. In this case, multimode fibers with short range, under 100 meters, transceivers such as QSFP-40G-SR4 or QSFP-100G-SR4 would be recommendable, whereas, for single-mode fibers the appropriate pairing would be a custom-made caterpillar called a ‘transceiver’ torsion bearer that can be paired with greater distances, for instance, QSFP-40G-LR4 (10 km) or QSFP-100G-ER4 (40 km).
Correct identification of cable and connector types, for example, OM3/OM4 for multimode or OS2 for single-mode types, is the most effective way of reducing the signal attenuation and preserving the system’s performance. Employing this logic when making choices about the performance capabilities of the existing infrastructure and the prospective growth needs of the network streamlines the decision-making process.
A: In data communication applications, a QSFP transceiver module serves as a hot swappable optical transceiver. The device is built to transfer a comparatively larger volume of data at high speeds. It is also common to find them in network devices such as switches and routers where they connect to a fiber optic network. In simple terms, a QSFP transceiver receives an electrical signal and converts it into an optical signal and reversely converts an optical signal back to an electrical signal when it’s sent to the QSFP transceiver.
A: QSFP-DD or Quad Small Form-Factor Pluggable Double Density is a superior type of standard QSFP whereby it contains an eight lane electrical interface. As a result, despite the use of dense connectors, QSFP-DD achieves twice the density and data capacity of the standard QSFP, reaching 400 Gbps data rates. The use of QSFP-DD form factor is not a problem for existing users of the network since it is backward compatible with current port types.
A: The primary distinction between QSFP and SFP transceivers is the amount and kind of function they possess. For instance quad small connectorable transceiver (QSFP) has greater data speed of about 400 Gbps making it more ideal for core to core network link which as the name suggests is designed to allow four connections simultaneously. On the other hand, SFP or Smart Form Factor Pluggable, has less data rates and is mainly employed as an attachment for devices like routers and switches. Moreover, as QSFP’s ports are bigger than SFP’s, it reasons why greater data connections are available.
A: SFP Transceivers are a common feature in gigabit network as they enable connection between fiber cable/optic cable with the SFP ports located on network devices such as Gigabit Ethernet which is one of the best features about SFPs as they are versatile and lend themselves to various network combinations. Furthermore, SFP transceivers allows for integration with Gigabit Ethernet networks by providing diverse types of media and lengths enabling fiber or copper cables.
A: The most distinct feature of the QSFP-DD MSA is that it is a Multi-Source Agreement, which describes a system of standard interfaces in QSFP-DD modules. This secures a compatible operation of separate engineers’ developments. These advantages include higher port concentration thanks to pluggable double density design, maintenance of existing QSFP standard modules, and ability to grow the bilateral data rates making the network more versatile.
A: SFP ports on a switch are meant for SFP transceivers which operate at lower data rates aimed at connecting servers and routers. However, QSFP ports have a larger size and accept QSFP transceivers operating at higher data rates for interconnecting mainstream network devices. Depending on the actual bandwidth requirements and topology of the network, one would use either SFP ports or QSFP ports.
A: Fiber cables in association with a QSFP-DD module facilitate the transmission of optical signals within a network over long distances. Moreover, the fiber cables carry the embedded optical signals, which previously have been converted by the QSFP-DD modules from electrical signals. This configuration is significant for high-speed data transfer in data centers as well as in strong network structures.
A: The QSFP28, a fiber multi-source agreement (MSA) transceiver, is one of the, supports 100 Gbps data adapter and hence suited for such applications that requires high bandwidth. In terms of its implementation architecture, it has four lanes, each of which transmits 28 Gbps, thus named as QSFP28. When put side by side with the other types of QSFPs like the QSFP+ or the QSFP-DD, QSFP28 is well suited for deployments of 100G Ethernet in that it is able to achieve nearly perf0rmance with respect to power efficiency.
