The Ultimate Guide to SFP-10G-ZR: Understanding the 1550nm 80km Optical Transceiver Module

The SFP-10G-ZR optical transceiver module is of great importance for businesses and network engineers dealing with the complexities of modern connectivity. It marks 10G long-haul networks with its ability to ensure 10Gbps data transmission over 80-kilometer distances with 1550nm wavelength, becoming a module of choice for long-distance networks. But what makes the SFP-10G-ZR module increasingly important in modern networks? This article will answer that question by defining its strategic value by discussing its technical specifications, benefits, and practical uses in long-distance communication, also looking into the role of the SFP-10G-ZR module in optimizing communication over distances beyond simple systems. Suppose you’re embarking on a new network installation or looking to upgrade a legacy network. In that case, you will find this article helpful in understanding the SFP-10G-ZR transceivers and equipping you with network planning and optimization.

What is the sfp-10g-zr and Its Specification?

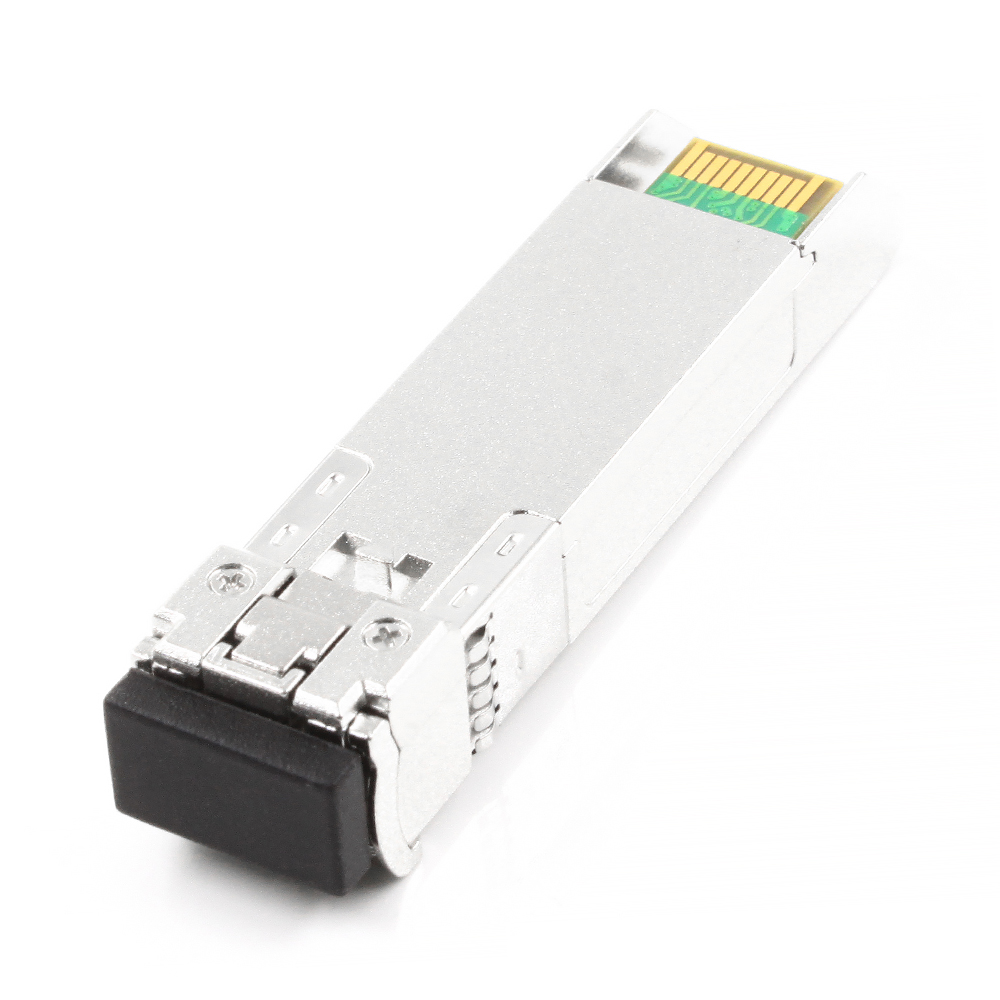

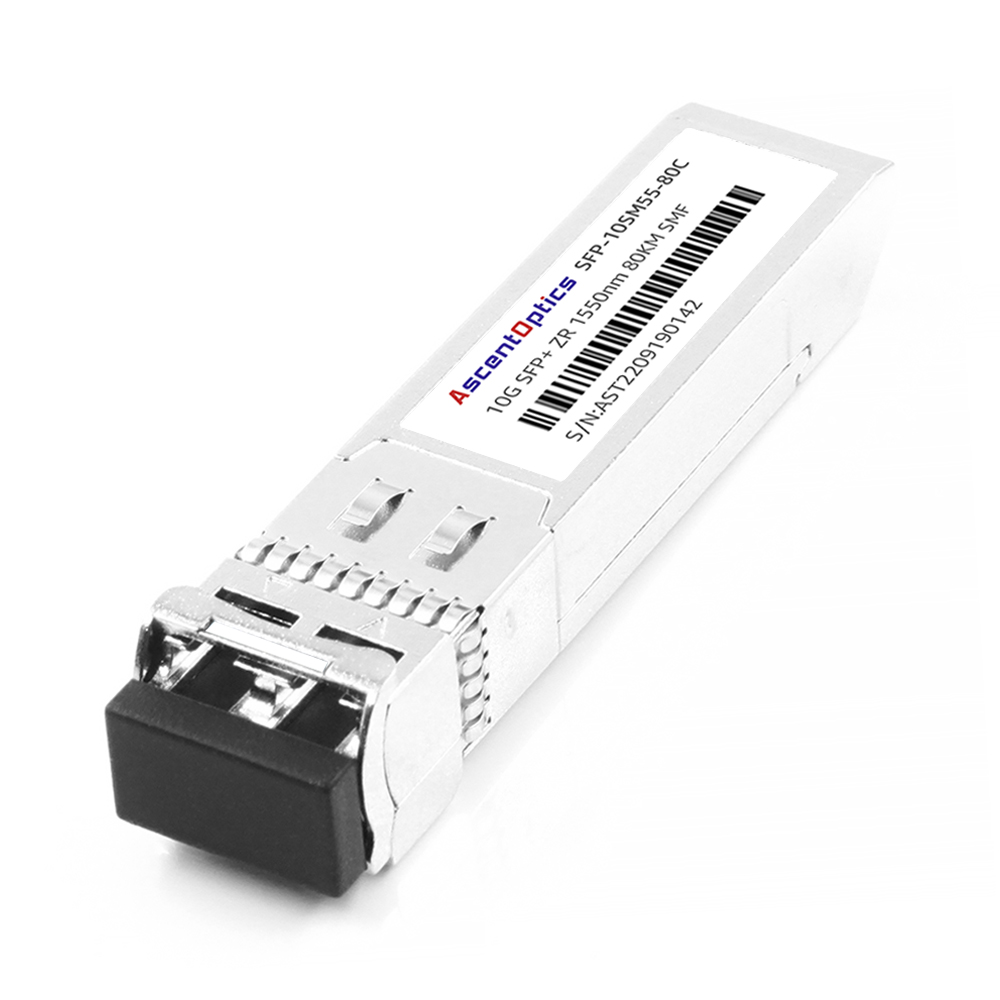

The device SFP-10G-ZR is an SFP+ transceiver with a 10 Gbps data rate specified for long-range optical communication. It uses single mode fiber SMF 1550 nm wavelength lasers, supporting transmission distances up to 80 km. The module meets IEEE 802.3ae specifications, allowing its use with other networking modules. Also it has a duplex LC interface, and uses EML Electro-Absorption Modulated Lasers cooled for signal preservation over long distances, which is essential for telecom and enterprise class networks.

Understanding the sfp-10g-zr transceiver module

The SFP-10G-ZR transceiver module enables long-distance and high-speed data transfer in enterprise networks and telecommunications. It allows data transfer rates of 10Gbps over distances of 80 kilometers by operating at a wavelength of 1550nm. The module incorporates advanced laser technology for dependable performance and uses an LC duplex connector. This module is compliant with a variety of network devices because of its IEEE 802.3ae standards compliance. Transceivers like these are best for organizations that need reliable data transmission over long distances.

Key specifications of the 1550nm 80km dom

• Wavelength: 1550nm.
• Data Rate: As high as 10 Gbps.
• Transmission Distance: Up To 80 km.

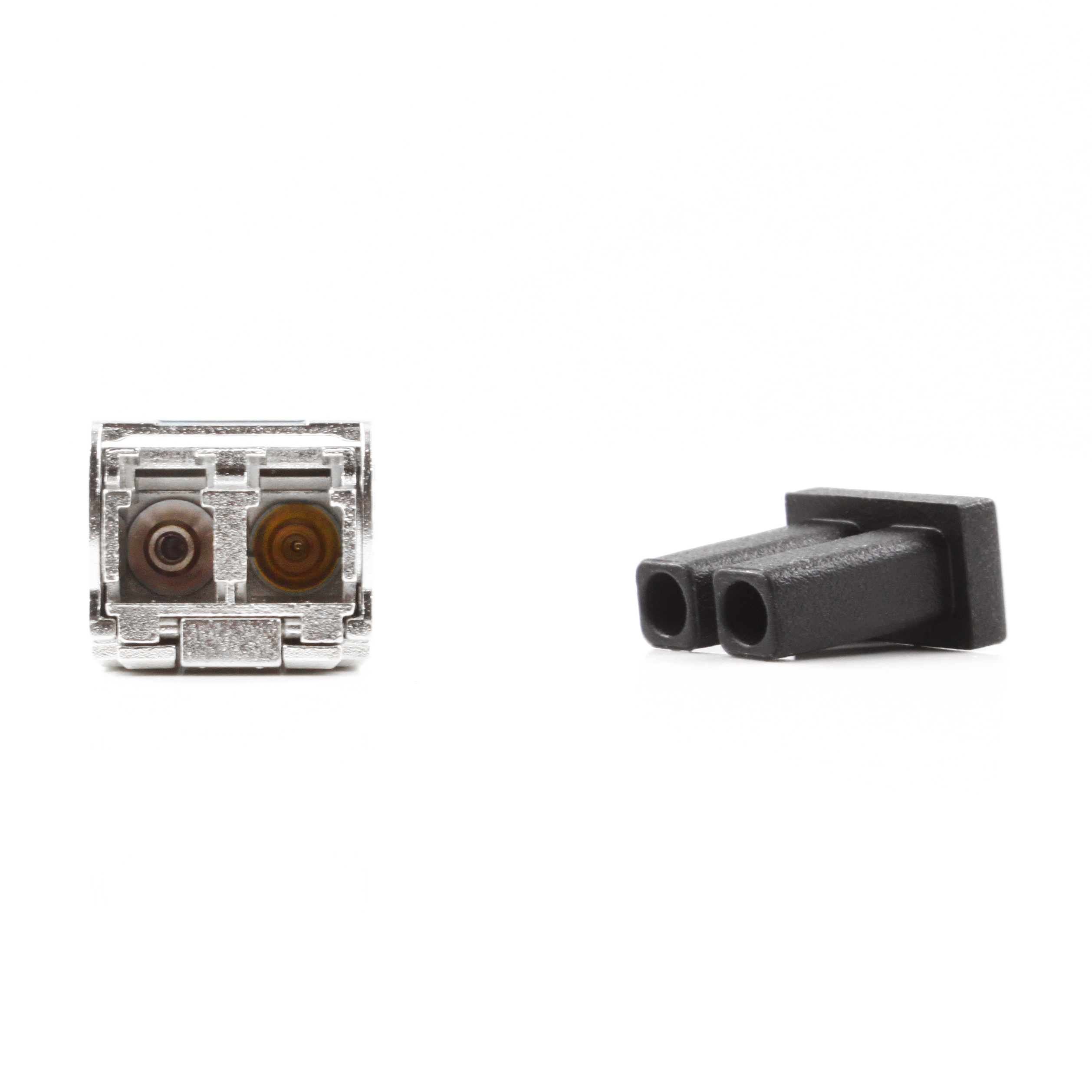

• Connector Type: LC duplex.
• Compatibility: Complies with IEEE 802.3ae standards.
• Laser Type: Cooled EML (Electro-absorption Modulated Laser).
• Receiver Type: PIN photodiode.
• Operating Temperature Range: 0° to 70° C (commercial); -40° to 85° C (industrial, depending on the model).
• Power Budget: Not less than 24 dB.
• Power Supply Voltage: 3.3V.
• Digital Diagnostic Monitoring (DDM): Yes, for real-time indication of factors like optical power, current, temperature, voltage, etc.
• Applications: Used in long-haul networks, metropolitan areas (MANs), and high-performance optical communication systems.

The above specifications portray the capability of the transceiver to offer high-speed and dependable data transmission over extended distances, thereby reinforcing its position as a dependable option for demanding networking situations.

How does the Cisco sfp-10g-zr compare with Cisco sfp-10g-zr compatible modules?

Like all Cisco SFP modules, the SFP-10G-ZR transceiver features high quality 10GBASE-ZR data transmission, but in pricing, support, quality, and compatibility, there is an associated difference for each module.

Build Quality and Performance

• Cisco manufactures the SFP-10G-ZR transceiver, so it is well-aerated on Cisco-tested devices, meaning it is guaranteed to work with make suppliant cores and switches. Because of this, the SFP-10G-ZR is guaranteed to have reliability, low latency, and superb performance in challenging settings. On the other hand, longer-lasting performance is harder to guarantee for third parties due to the variations in their testing and the manufacturing processes they use.

Compatibility

• Cisco’s SFP-10G-ZR works well with Cisco network equipment gaining a plus on integrating them and auto-sensing. Moreover, compatible modules for SFP-10G-ZR basically bypass the logic of using equipment with counterpart routing enabling more interoperability servicing Cisco machines marking borderline figuring lack of guarantee when encountering with new releases changes on older versions of Cisco systems might bring.

Pricing

• Cost remains one of the most notable differentiating factors. Cisco does offer compatible modules; however, Cisco-branded modules are generally more expensive due to the valuable support, warranty, and quality associated with Cisco. On the other hand, cheaper modules do offer a financially reasonable option, commonly at a much lower price. This affordability makes them appealing for organization’s with strict budgets. Nonetheless, the cost saving eludes with useful support assistance or guaranteed integration.

Warranty and Support

• In terms of warranty, the Cisco SFP-10G-ZR transceivers come with a furnished warranty and specialized technical support from Cisco’s trained staff. This aid guarantees fast resolution of troubleshooting and issue diagnosing. Compatible transceivers do offer warranties supplied by third-party vendors, but such warranties tend to be short in duration and lack direct support from Cisco.

Advanced Monitoring Features

• Equipped with Digital Optical Monitoring (DOM) functionality is the Cisco SFP-10G-ZR transceiver that provides real time monitoring of critical operating parameters such as: optical power, temperature, and voltage. Some supporting third party modules also have DOM; however, the accuracy and reliabiltiy of this feature is manufacturer dependent.

Summary

Even though the Cisco SFP-10G-ZR transceiver has the best integration, reliability, and support, compatible modules are a more cost-effective option for less critical use cases. Organizations need to evaluate their networking needs, budgets, and the potential risks of reduced compatibility or support associated with lower cost options before selecting an appropriate solution.

How Does smf Connectivity Enhance Performance in 80km dom lc smf Transceiver?

Role of single-mode fiber in long-haul applications

When it comes to long-haul applications, single-mode fiber is indispensable, as it allows high-speed data to be transferred over long distances with little to no signal loss or degradation. Single light mode propagation due to lower core diameter increases the integrity of the signal and reduces dispersion. An example of this is the 80km DOM LC SMF transceiver. It is ideal for use cases where dependable and effective connectivity is needed over extensive distances.

Benefits of low power consumption in optical transceiver modules

A Comprehensive Guide to iSCSI: Understanding How it Works and its BenefitsWritten by AscentOptics
March 13, 2025

As measured from both technical and operational viewpoints, low power consumption in optical transceiver modules offers numerous benefits. A few are noted below:

Enhanced Energy Efficiency

• As highlighted in the previous section, the consumption of energy by data centers and network infrastructure is reduced with the employment of power-efficient optical transceivers. Research shows that energy-efficient transceiver modules are capable of reducing system power usage by approximately 30%, thereby lowering operational costs in data centers.

Heat Reduction

• As discussed earlier, lower energy consumption translates to lower heat energy being released. This results in less thermal-related performance degradation that ensures better functioning of the module and longevity, thereby reducing the need for frequent replacements.

Reduced Cooling Requirements

• Fewer components to manage dynamic environments and static cooling mechanisms mean lower operational costs. As mentioned earlier, effective cooling systems account for a substantial share of a data center’s operational expenses.

Improved Reliability

• By design, reducing power consumption relaxes the operational load placed on transceivers and their associated hardware, reducing their rate of failure and improving system reliability. This is particularly important for networks that require uninterruptable service.

Compact Deployments

• Less energy consumed means lower cooling and power management components, allowing for the construction of smaller and denser optical networks. This is beneficial in space-constrained environments such as edge computing facilities.

Sustainability and Environmental Impact

• The use of low-power optical transceiver modules contributes to the sustainable and environmentally friendly operation of the network system by reducing the overall energy consumption. This is in accordance with green IT techniques and helps curb the carbon footprints of vast network systems.

Cost Savings on Power Infrastructure

• Optical modules with low energy consumption aid or enable networks to avoid costly upgrades to power infrastructure that would be needed to serve increased power needs.

Extended Equipment Compatibility

• With lower power requirements, these modules are more flexible and, therefore, compatible with more pieces of equipment, aiding in increased network scalability and easier network upgrades.

All of these benefits showcase the technical and economic advantages of low-power optical transceiver modules, underlining their role in designing modern energy-efficient networks.

Exploring Transceiver Compatibility: Is Your Module sfp-10g-zr compatible?

Compatibility with Cisco devices and other networks

Like other Cisco products, the sfp-10g-zr module works seamlessly with other brand devices as long as the devices are set up for interworked compatibility. Features ZR optical specification and 10G SFP+ ports; it is tailored for long-distance applications, including single-mode fiber reaching up to 80 kilometers in distance. Still, check with the manufacturer’s documents for the compatibility matrix of the specific devices.

Ensuring gigabit ethernet connectivity and efficiency

In order to maximize the efficiency of gigabit Ethernet connectivity, a number of modern factors need to be addressed in relation to network reliability and performance. Gigabit Ethernet is known to support a speed of 1 Gbps, typically providing robust solutions for bandwidth-demanding tasks. Adequate performance requires quality cabling, configured hardware, and good network management practices.

Cabling and Infrastructure Requirements

Stable connections for gigabit Ethernet require certain types of cabling to be used, specifically Cat 5e, Cat 6, and newer standards. Cat5e allows for 1 Gbps throughput over distances up to 100 meters. However, in cases of higher interference and longer runs, the enhanced shielding and reduced cross-talk offered by Cat6 and Cat6a make them ideal.

Comparing RoCE, InfiniBand, and TCP Networks: Choosing the Right High-Performance ProtocolWritten by AscentOptics
March 13, 2025

Avoiding Bottlenecks with Network Hardware

Management class switches offer significant benefits over their regular counter parts when it comes to mitigating performance bottlenecks. With the ability to assign VLANs and integrate QoS configurations, optimized traffic management becomes possible. Maximized performance can also be achieved by routinely updating the firmware to reduce device related vulnerabilities.

Implementing Efficient Protocols and Control of a Network of Queues

In hierarchical and mixed-use economic/converged environments where competition for resources poses a challenge, it is advisable that network administrators prioritize essential traffic using QoS protocols. Employing adequate load balancing in conjunction with monitoring usage patterns using network tools can be useful in identifying and alleviating congestion bottlenecks. The incorporation of Link Aggregation Control Protocol (LACP), along with other advanced internetworking protocols, enables greater bandwidth and redundancy through the logical aggregation of several physical links into a single channel.

Benefits of Modern Standards and Technologies

Concurrently adopting emerging technologies like 10G Ethernet backbone also augments traditional gigabit Ethernet in meeting increasing demand for data. Suppling both power and data through a single cable, Implementing Power over Ethernet (PoE) enhances operational efficiency for IP camera and VoIP deployments. The latest technologies comprising the network equipment now support the Energy Efficient Ethernet (EEE) standard, which reduces power consumption during low traffic periods without affecting performance.

Gigabit Ethernet remains and will continue to be the primary standard for enterprises and residential users. Increased organizational dependability and efficiency is achieved when high-performance cabling and robust hardware together with effic ient traffic management approaches are employed to modern standards, all enabling networks to meet organizational demands.

Understanding the significance of ieee 802.3ae compliance

Compliance with IEEE 802.3ae is essential for ensuring the proper functionality of 10 Gigabit Ethernet (10GbE) networks. The 10GbE standard describes the mechanisms needed to accomplish data transfer over fiber optic and copper media, enabling reliable long-distance communication in high-bandwidth environments. Compliance guarantees smooth interoperability between devices and robust data transfer and enables the growth that modern network systems require. Such compliance is critical for networked organizations looking to enhance their performance in data-intensive tasks by further proofing their networking systems.

How to Refurbish Your SFP-10G-ZR? Tips and Best Practices

Refurbishment process for enhancing transceiver longevity

Effective maintenance changes and refurbishment for SFP-10G-ZR transceivers may drastically enhance their functionality and operational lifeline in exceptionally demanding, multi-transceiver, high-speed networking applications. The refurbishment process execution guarantees the reliability of the components by combining several best practice steps.

Deep Cleaning and Inspection

• Start inspecting a transceiver by identifying scratches, debris, and damage on its ports and connectors. The transceiver also requires cleaning with 99% Isopropyl Alcohol (IPA) to remove potential contaminants that may hinder data transmission. Fiber optic connectors require cleaning with specialized swabs to ensure proper signal transmission.

Signal Integrity and Performance Testing

• Performance of the transceivers should be gauged using modern diagnostic equipment like optical power meters, bit error rate testers (BERT), and loopback modules to determine its strength, latency, and error rate. Defining benchmarks using manufactures specifications aids in determining if there is need to adjust or replace certain components.

Firmware Upgrades

• Obtain existing firmware updates of the device from the Original Equipment Manufacturer (OEM). Updating device firmware resolves operational disputes with previously loaded programs as well as increases the life span of the device therefore improving device operational efficiency.

Substitution of Damaged Parts

• Take every replacement and comply with all standards. As an example, the optical lenses and connectors may be substituted with compliant, high-quality parts. All replacements must ensure compliance with IEEE 802.3ae and other standards so that they can be seamlessly integrated into the network infrastructure.

Environmental Stress Testing

• Stress test the environmental boundaries of the refurbished transceiver by testing them under different operating conditions. Simulated operating conditions like extreme temperature, humidity, and vibration is a must as it ensures the device can withstand demanding situations in data centers or enterprise installations.

Documentation and Labeling

• Every step taken alongside any tests done must be documented after the refurbishment is complete. Traceability and accountability is a must which is provided through the labeling of the transceiver that will include the performance metrics, firmware version along with the date of refurbishment.

Refurbished 10GbE networks prove to be cost effective when maintained or replaced early which helps in controlling the costs of operation, however, attention to detail must be achieved to ensure reliable performance. Strong refurbishment practices ensure the fulfillment of environmental goals through reduced electronic waste that results from the repurposing of valuable networking hardware.

Comparing cost-effective refurbishment versus purchasing a new

Refurbishment drastically reduces expenses when compared to the purchase of new transceivers. Most organizations can save an impressive 50 to 70% without losing functionality by purchasing refurbished units instead. Transceivers that have been refurbished are tested for reliability, making them suitable for non-mission critical or budget constrained deployments.

On the other hand, the purchase of new sophisticated equipment guarantees the most recent advancements in technology, improved warranties, and vendor support. New equipment may offer long-term value for critical infrastructure systems and where future scalability might be required, despite their higher initial costs.

As with any business expenditure, the logical approach would be to blend the requirements with the needs of the network, budgetary restrictions, and the weight of the equipment.

Writing a review: What Should You Look for in Customer Reviews of SFP-10G-ZR?

Importance of real-time performance assessments

Executing performance metrics in real-time is vital in assessing the SFP-10G-ZR transceivers since they reflect how the hardware operates in an actual network environment. The transceiver’s performance against operational standards is measured with heat, latency, signal integrity, and dissipation monitoring.

The capability of identifying distinct environments and their alteration impacts on performance is one of the advantages of real-time evaluation. Distance of transmission, the infrastructure already in place, and the level of interference also adapt. A standard SFP-10G-ZR module can potentially handle as much as 80 kilometers of single-mode fiber transmission. However, real-life conditions like the quality of the fiber and splice losses can limit this range, which requires testing.

Beyond that, these assessments make benchmarking within industrial parameters possible. Research asserts that optimized performance requires 10G networks to have less than 10^-12 bit error rate (BER) for continuous data flow. Power and network analyzers, as well as optical meters, allow the monitoring of real-time data collection with evaluation automation.

In summary of all the arguments, real-time performance analysis enables firms to check if the SFP-10G-ZR transceivers with selected benchmarks are compliant, hence avoiding network downtimes and enhancing efficiency.

Analyzing customer reviews for reliability insights

Analyzing customer reviews is helpful in understanding the SFP-10G-ZR modules’ performance. Organizations can analyze reviews from verified purchasers and derive insights pertaining to performance, reliability, longevity, and compatibility with other pre-existing network systems. A review that has been positively rated more than once is viewed as a reliable product; however, constant negative reviews signal concern. When analyzing customer reviews, especially for SFP-10G-ZR modules, focus on feedback from industry professionals, as they utilize these modules in practical situations similar to the deployment scenarios investigated by other professionals. Their experiences are important for other professionals making decisions.

Frequently Asked Questions (FAQs)

Q: What is the SFP-10G-ZR, and what are its key features?

A: The SFP-10G-ZR is categorized as a 1550nm 80km DOM LC SMF optical transceiver module. The device in question is a 10G SFP+ module, which has a single-mode OS2 fiber link length capacity of 80km. Some of the notable features include compliance with 10GBASE-ZR standards, support of DDM (digital diagnostics monitoring), and monitoring of operating parameters in real-time as dictated in SFF-8472.

Q: Is the SFP-10G-ZR compatible with Cisco equipment?

A: Yes, there are Cisco-compatible SFP-10G-ZR modules available. These 10GBASE-ZR SFP modules are tailored for integration with Cisco routers and switches. With these compatible devices, customers can use Cisco’s functionality without having to pay the premium traditionally associated with Cisco-branded SFPs.

Q: What is the maximum distance supported by the SFP-10G-ZR?

A: The SFP-10G-ZR has a long-reach application design and supports an OS2 single-mode fiber link length of 80km. This optimizes reach in enterprise network equipment, data centers, and telecommunications.

Q: What type of fiber and connector does the SFP-10G-ZR use?

A: The SFP-10G-ZR uses SMF (Single-Mode Fiber) and LC connector. It supports G.652 fiber types that are applicable for use in long-distance, high-speed optical communication.

Q: What is DOM, and does SFP-10G-ZR support it?

A: DOM is an acronym for Digital Optical Monitoring or Digital Diagnostics Monitoring. The SFP-10G-ZR indeed supports DOM allowing monitoring in real-time of operating parameters like temperature, voltage, and optical power levels of the transceiver.

Q: Does the SFP-10G-ZR device meet the industry standards?

A: Sure, the SFP-10G-ZR is compliant with the SFP+ MSA (Multi-Source Agreement) Standards and 10GBASE-ZR specification. Furthermore, it complies with the SFF-8472 standard of digital diagnostics monitoring.

Q: What is the warranty and return policy for SFP-10G-ZR modules?

A: Warranty is provided by different manufacturers, which may vary, but most of them have a standard 3-year warranty covered. Some vendors, like QSFPtek, offer extended warranty options. Most reputable sellers offer a money-back guarantee, which allows customers to get a refund typically within 30 to 45 days.

Q: What is the typical delivery time when ordering SFP-10G-ZR modules?

A: Delivery times differ based on the supplier and the buyer’s geographic location. Most suppliers provide expedited shipping services that guarantee delivery within 3-5 working days. Standard shipping may take around seven to ten business days. For best delivery quotes, consult with the vendor directly or log into their portal and check the status of your order.

Q: Is it possible to use the SFP-10G-ZR for 10GBASE-ZW applications?

A: The SFP-10G-ZR is primarily designed for 10GBASE-ZR applications. This does not rule out the possibility that it can be utilized for some 10GBASE-ZW scenarios. Nonetheless, ensure that you check the compatibility against your network equipment and 10GBASE-ZW requirements, as this may possess additional characteristics than those encompassed in standard 10GBASE-ZR modules.
