The quick development of data center technologies and network infrastructures has created a critical need for faster, more efficient, and scalable solutions. Foremost in this transition is the QSFP28 transceiver, an optical module that delivers superior performance to address the challenges of 100G Ethernet networking. So why is the QSFP28 transceiver so vital in modern technology, and how does it work? This guide delves deeper into the technicalities, advantages, and areas of operation of the QSFP28 transceiver. Whether you are a network engineer, IT manager, or tech geek- this article will give you a comprehensive understanding of how this powerful module has transformed high-speed data connectivity. Stick around as we investigate top features, standards, and innovations associated with QSFP28 transceivers in today’s state-of-the-art networks.

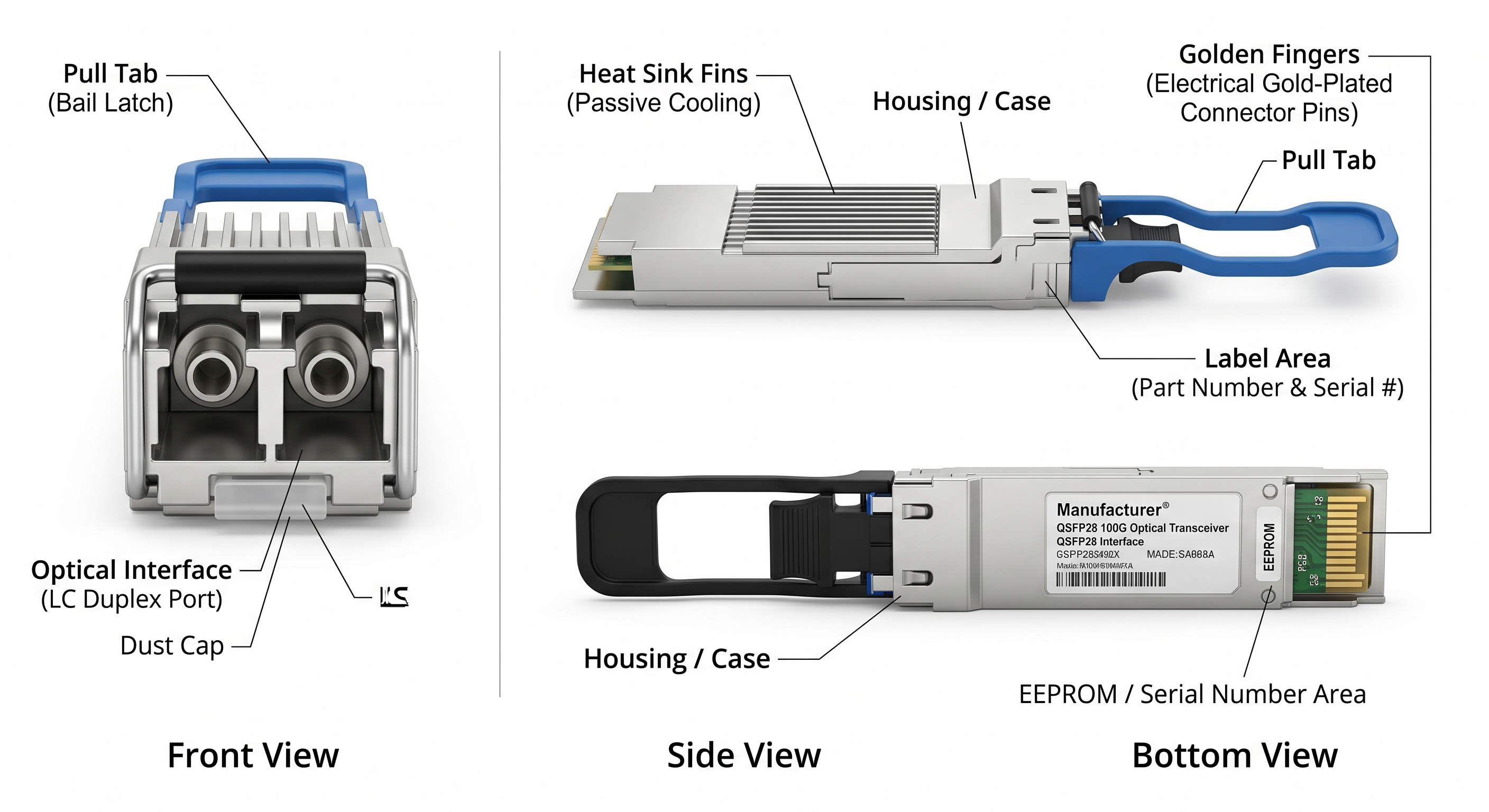

The QSFP28 (Quad Small Form-factor Pluggable 28) transceiver is a compact module that can be hot-swapped and is designed to support high-speed data transfer in today’s network. With up to 100 Gbps speeds, it is frequently used within data centers, enterprise networks, and telecommunications infrastructure. The QSFP28 transceiver supports Ethernet, Fiber Channel, InfiniBand, and many other communication standards, but at the same time, it allows both optical and electrical connections. Therefore, this highly efficient transceiver is indispensable when there is a need to meet the growing bandwidth requirements in high-performance networking environments.
The QSFP28 form factor aims to support fast and small alterations in communication networks. It allows for four lanes of high-speed data signals, all of which can transmit data at the speeds of up to 25 Gbps. This gives it a total bandwidth capacity of 100 Gbps. It has been designed with a compact design that optimizes space usage and can be used with many different networking protocols and infrastructures. The form factor’s reliability and performance have made it an ideal option for high-bandwidth applications common today.
Multiple advantages of QSFP28 over other transceiver types are realized across different dimensions, such as data rates, form factors, and power efficiencies. QSFP28 was specifically designed to support 100 Gbps of data through four 25 Gbps lanes, which is higher than the capabilities of previous versions like SFP+ and QSFP+, which have maximum limits at 10G and 40G, respectively. This increase in bandwidth has made it suitable for data centers moving towards high speed infrastructures.
Apart from those mentioned above, compared to CFP transceivers, QSFP28 is more compact, hence enabling a higher port density in network equipment. For example, a rack-mounted switch with QSFP28 ports can offer more than double the port count compared to a switch using CFP transceivers, saving space within highly congested areas.
Furthermore, QSFP28 is far ahead of its competitors in terms of energy efficiency. Generally, power consumption by the equipment ranges between 3-5 watts, much lower than if we compare it to CFP or CFP2 modules. By doing so, they can significantly reduce costs and effectively manage heat in their tightly packed devices.
In addition, QSFP28 is highly versatile, as it can be used for networking purposes involving 100GbE, OTN, and InfiniBand, among others. Furthermore, its adaptability, coupled with its cost-effectiveness and scalability, makes this module a better choice for addressing the present-day requirements in high-speed networking.
Support for High Data Rate
These transceivers, QSFP28, can support speeds as high as 100Gbps, making them suitable for advanced high-performance networking applications. They are meant to accommodate four lanes of 25 Gbps or one single link of 100 Gbps, thus providing unprecedented bandwidth to data centers and enterprise networks.
Low Power Consumption
Usually, QSFP28 modules require less than 3.5W power, even under maximum operational loads. In hyperscale data center deployments and other large-scale installations, this energy-efficient system minimizes the power requirements and heat output, hence ensuring effective thermal management.
Small Physical Size
The small design of QSFP28 follows the quad small form-factor pluggable (QSFP) standard with four lanes. This increases port density on switches and routing devices, leading to firms’ better scalability without compromising their performance while optimizing rack space utilization.
Wide Compatibility
It is essential to mention that QSFP28 transceivers work with various standards, such as Optical Transport Network (OTN), Fibre Channel, InfiniBand EDR, and 100 Gigabit Ethernet (100GbE). Accordingly, they can easily fit in many network environments, such as large-scale cloud infrastructures and high-speed data centers.
Extended Reach
Other options for these transceivers are SR4 (Short Reach), LR4 (Long Reach), and ER4 (Extended Reach). For example, the LR4 variant allows single-mode fiber transmission distances up to 10 km while ER4 supports up to 40 km which fits both intra-data center and long-haul applications.
Advanced Error Correction
In QSFP28 modules, FEC (Forward Error Correction) is integrated to achieve reliable data transfer without many packet losses, hence maintaining the integrity of information in high-speed links.
Hot-Swappable Design
These hot-swappable QSFP28 transceivers are designed so that they can easily be replaced or integrated without interfering with the network operation. This feature eases maintenance and reduces downtime in service operations.
Cost Efficiency
QSFP28 modules provide cost-effective solutions even though they have advanced capabilities making them efficient upgrade paths for companies migrating to 100G networks. Their ability to minimize power utilization and maximize hardware usage makes them worth the investment.
Adopting QSFP28 transceivers can simplify businesses’ network infrastructure and enhance performance and efficiency across diverse high-speed connectivity applications.

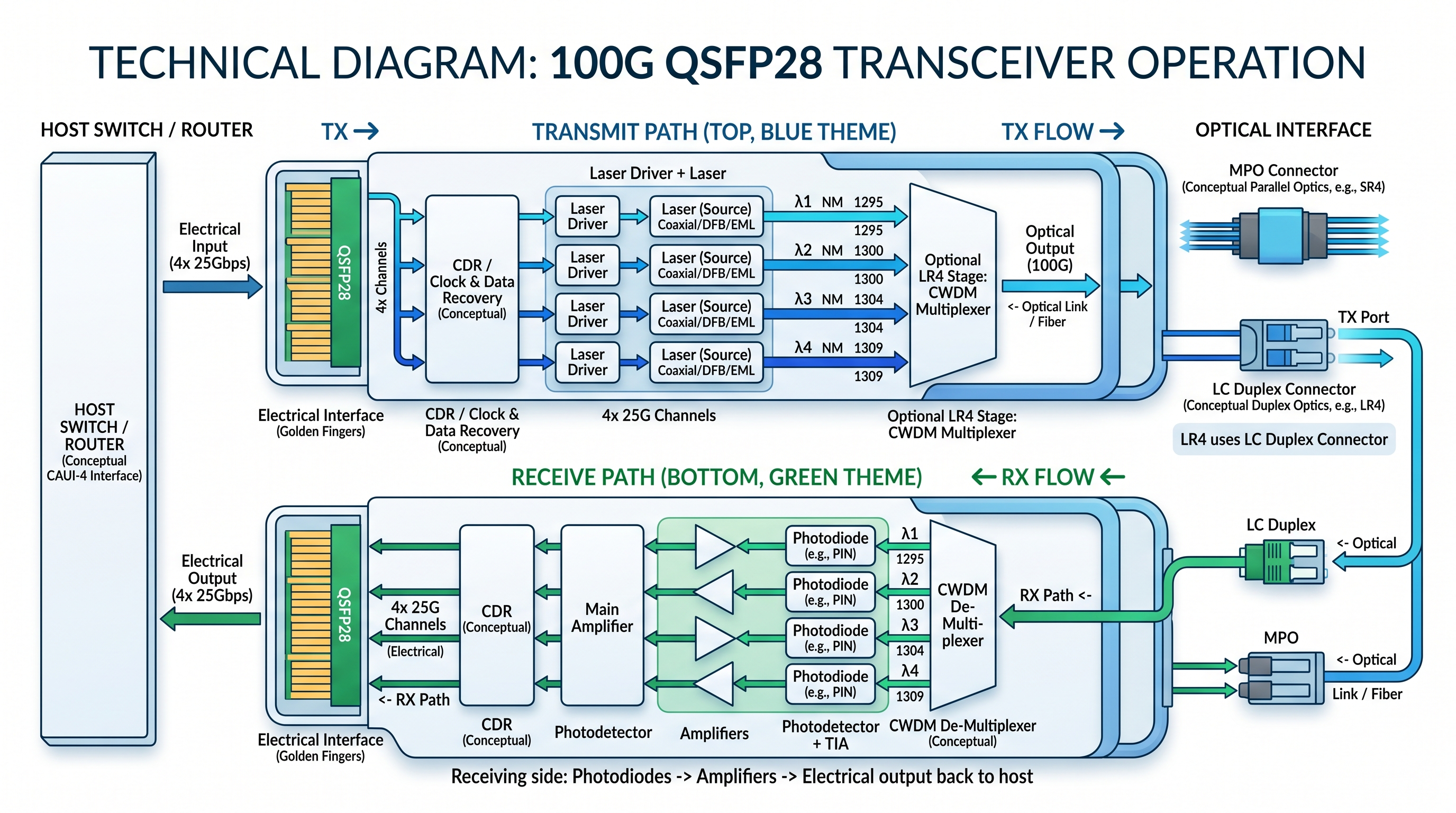

High-performance network environments are well-suited to QSFP28 transceivers, which have a data rate of 100Gbps. Every QSFP28 module has four independent lanes, with each lane operating at 25Gbps. This provides the transceiver with an efficient way to handle large amounts of data in a single transaction. In addition, these gadgets come hand-in-hand with NRZ signaling and support different modulation types.
The bandwidth capacities of QSFP28s are designed for the increasing demands of enterprise networks and data centers. Such instances include applications like 100G Ethernet, cloud network deployments, and data center interconnects. For example, their compatibility with both multi-mode and single-mode fiber enhances their flexibility and hence can be used in various network architectures.
Furthermore, the QSFP28 modules operate with minimal latency and high signal integrity, which are important in reducing data packet loss to a minimum level. These technical benchmarks match those needed by modern high-speed communication systems that cater for scalability as far as bandwidth is concerned while maintaining the same energy efficiency level. The combination of these three factors; speed, reliability, and power efficiency has made organizations use QSFP28 transceivers as a basis for building high-performance networks
Networking and data transmission use optical and electrical interfaces as fundamental constituents, each designed for specific purposes. On the other hand, optical interfaces depend on light signals that are sent through fiber optic cables and, hence, can reach very high data rates over longer distances with less signal loss. This means one of such current optical modules, QSFP28 transceivers, can hit up to 100 Gbps speeds with a reach of up to 40 kilometers, making them well-suited for intercontinental and metropolitan area networks.
For the latter, copper-based cables are used to transmit electrical signals. The technology is more often than not deployed for short-ranged connections within a data center or a rack owing to signal degradation at long ranges. Electrical interfaces have shorter reaches, usually under five meters, but they are cheap and consume low power, thus suitable in applications requiring speed across limited distances.
Data shows that the world is turning increasingly towards optical networks as global internet traffic grows at an estimated compound annual rate of more than 20%, leading to demand for 100G QSFP28 solutions. Optical interfaces allow great scalability since they support dense wave division multiplexing (DWDM), meaning these networks can carry higher bandwidths. However, in terms of upfront cost as well as ease of deployment in tight spaces, electronic interfaces play an important role because they fit into high-density environments more easily and economically.
Through the strategic combination of these two technologies, enterprises can optimize networks to meet current trends concerning efficiency and flexibility.
Wavelengths in optical networks are critical because they dictate the data transmission efficiency and its scope. The frequently used wavelengths include 850 nm, 1310 nm, and 1550 nm, each serving different purposes. Generally, 850nm wavelength is used for short-distance multimode fiber supports spanning up to 500 meters. On the other hand, the wavelength of 1310 nm is ideal for intermediate distances, which range between 2km and 10km over single-mode fibers. Finally, the wavelength of 1550 nm is considered suitable for long-haul transmissions because it has lower attenuation, permitting greater distances than those attainable with other wavelengths, such as over forty kilometers with proper amplification. Such choices of wavelengths enable networks to meet both performance requirements and cost criteria at once.
The 100GBASE-SR4 QSFP28 transceiver is made explicitly for short-range fiber optic connections. It works on multimode fiber and supports transmission of up to 100 meters with OM4 fiber and OM3 fiber for 70 meters. This kind of transceiver is popular in data centers because it helps to create high-speed, short-distance links between servers and switches, thus enabling effective communication.
The 100GBASE-LR4 QSFP28 transceiver is designed for long-haul fiber optic communications and is widely used in high-performance networks. It works with single-mode fiber (SMF) and can cover distances of up to 10 kilometers, making it the best choice for LC SMF optical transceiver modules. The transmitter employs four wavelengths on a coarse wavelength-division multiplexing (CWDM) grid, with each channel transmitting at a rate of 25 Gbps, leading to a total data rate of 100 Gbps.
This module is compliant with IEEE 802.3ba standard and uses duplex LC connector for interface connectivity. It has great optical performance, typically maintaining less than 3.5W power consumption. Commonly found in metropolitan area networks, business premises, and interconnections within data centers, this product offers long-distance dependability while facilitating highly efficient high-speed data communication systems. Due to these characteristics, it perfectly suits the expansion of wide-band networks that require long-distance coverage capabilities.
QSFP28 Single Lambda modules have made an optical technology breakthrough, which allows delivery of 100G Ethernet connectivity over a single wavelength. These modules use 4-level pulse amplitude modulation (PAM4) to achieve high bandwidth and better spectral efficiency. They offer cheaper and simplified options for upgrading data centers and cloud networks while cutting fiber needs when compared to traditional four-wavelength approaches.
Technical Specifications and Performance
Advantages
Hyperscale data centers, telecom operators, and edge computing scenarios are supported by QSFP28 Single Lambda, which needs affordable, high-speed connections while reducing network complexity. It closes the gap between current network requirements and expansion in the future.
Cisco-compatible QSFP28 transceivers are well known for providing economical, high-speed optical connectivity solutions. These transceivers comply with the Multi-Source Agreement (MSA) standards, making them compatible with Cisco switches and routers while ensuring optimal networking.
Key Features and Variants

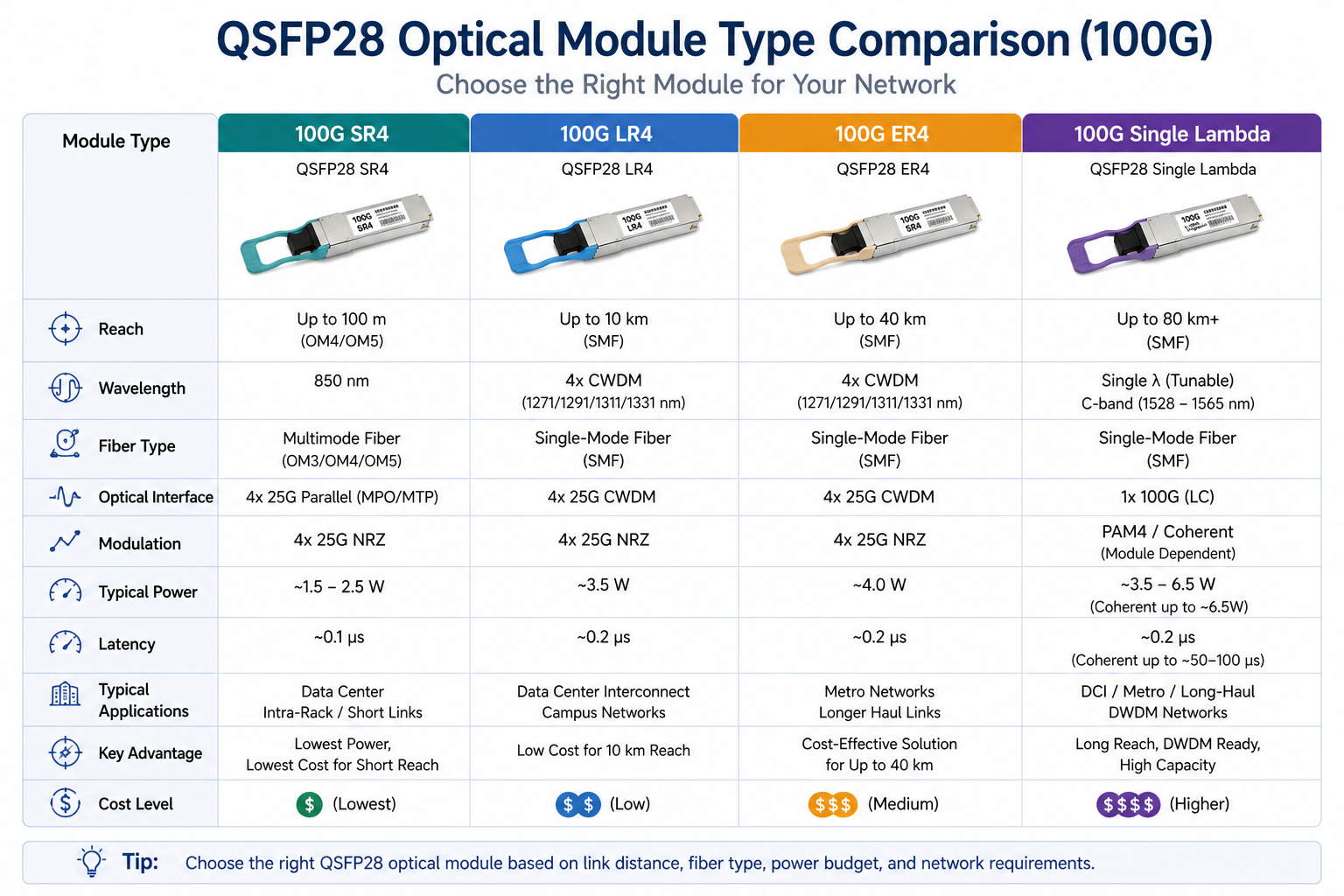

100GBASE-SR4
100GBASE-LR4
100GBASE-PSM4
100GBASE-CWDM4
Assessing Reliable Performance
The rigorous testing procedures, such as signal integrity analysis, thermal cycling, and performance benchmarks done on these Cisco-compatible QSFP28 transceivers, assure high dependability in mission-critical applications. Vendors may provide warranty and comprehensive support documentation, thus making customers trust their products more.
Therefore, businesses can use Cisco-compatible QSFP28 Transceivers to strike a balance between network scalability, cost control, and seamless interoperability without compromising quality or performance. This makes them very useful in modern data centers.
Arista has engineered QSFP28 modules that are compliant and can integrate with their routers and switches. These optical transceivers offer high-speed connections, usually with an ability to reach 100 Gigabits per second in data transfer rates. They will assure you of superb performance and constant signal quality. Arista tests these products to ensure they meet the required compatibility levels and also are reliable enough for commercial use cases hence becoming a favorite among clients who want to improve their network infrastructure’s efficiency. Besides, these modules are usually priced more affordably than OEM equivalents yet maintain interconnectivity plus feature sets needed by users.
The QSFP28 MSA (Multi-Source Agreement) compliant modules provide a standardized remedy to guarantee inter-working between various network hardware. Such modules follow well-established industry protocols, extending their compatibility range with devices such as Arista switches, for example. The performance of these transceivers is 100Gbps, and they also allow simple integration into the existing infrastructure with options like SR4 for short-range, LR4 for long-range, and CWDM4, which has higher wavelength efficiency than is available in the market. They always function consistently, and many devices can use them since they have been designed strictly following MSA standards.
In order to ensure optimal network performance, it is important to know transmission distance requirements when picking a QSFP28 transceiver. The transmission range capability of QSFP28 modules depends on their categorization, which varies according to the type of transceiver and the optical technology used.
When considering applications that require low latency, the most suitable option would be the QSFP28 SR4 (Short Reach) transceiver, which allows distances of up to 100 meters over OM4 multimode fiber. This is usually applied in data centers and enterprise networks having high-density environments.
The QSFP28 LR4 (Long Reach) can also be considered for medium to long-distance transmissions where it employs a bidirectional wavelength division multiplexing (WDM) system to support distances up to 10 kilometers over single-mode fiber. The QSFP28 ER4 supports up to 40 kilometers for longer distances and is commonly used in metropolitan area networks (MANs) and telecom applications.
For intermediate range, higher efficiency designs are presented by CWDM4 and PSM4 alternatives. With greater wavelength management capabilities, QSFP28 CWDM4 modules will cover up to 2 km over single-mode fiber; while offering comparable reach, QSFP28 PSM4 provides cost-effective parallel single-mode technology.
Choosing an appropriate QSFP28 transceiver requires a precise network range assessment so that the purchased module can harmonize with budget limits as well as infrastructure compatibility.
In contemporary optical communication networks, MPO (Multi-Fiber Push-On) and LC Duplex connectors are highly instrumental in fiber optic connectivity with specific use cases and performance considerations.
MPO Connectors are high-density fiber connectors that can support 12, 16, or even 24 fibers on one ferrule. They have a design optimized for parallel optical transmission, which is necessary in high-speed networks like 40G, 100G, and beyond. MPO connectors are commonly used in data centers and high-bandwidth applications because they help reduce the physical footprint by attaching several fibers at once, thus accelerating deployment times. For example, an MPO connector with 24 fibers can handle up to 3x100G connections (utilizing eight fibers per link). Nonetheless, precise alignment and high cleaning standards required for MPO connectors may make it difficult to maintain signal quality, especially when using the 100G QSFP28 transceivers.
LC Duplex Connectors, alternatively, are mostly utilized for single-mode and multi-mode fiber applications because they are small-sized and straightforward. LC Duplex connectors consist of two fibers—one transmitting and the other receiving—making them best suited for tunneling packets between two points in network topologies like enterprise LANs, FTTx installations, and optical links with short to medium ranges. They have ceramic ferrules that guarantee good alignment and signal integrity. For instance, telecoms can use QSFP28 LR4 modules together with LC Duplex connectors to transmit up to 10 kilometers distance in metro area networks
|
Feature |
MPO Connector |
LC Duplex Connector |
|---|---|---|
|
Fiber Count |
12 to 24 fibers |
2 fibers (1 Tx, 1 Rx) |
|
Primary Use Case |
High-density, parallel transmission |
Single-point, duplex connections |
|
Applications |
Data centers, high-speed networks |
Enterprise LANs, telecom |
|
Ease of Maintenance |
Requires advanced cleaning tools |
Easier to clean and align |
|
Cost Efficiency |
Cost-effective for dense setups |
Cost-effective for low-density needs |
Understanding these differences is essential to selecting the right connector type for specific network configurations. While MPO connectors excel at reducing cable congestion in high-density environments, LC Duplex connectors remain a reliable option for focused, lower-density deployments. Ultimately, the choice depends on the network’s scale, purpose, and budgetary considerations.
Digital Diagnostic Monitoring (DDM), or Digital Optical Monitoring (DOM), is a feature built into QSFP28 optical transceiver modules, enhancing network performance and reliability. It permits the tracking of such key parameters as output power, input power, laser bias current, temperature, and supply voltage on a real-time basis. These metrics assist in proactively identifying signal degradation or overheating, or component failures for network administrators. Using DDM/DOM means effective troubleshooting, predictive maintenance, and improved overall network stability.
To install QSFP28 transceivers correctly, you should:
Following these steps promotes optimal performance and longevity of a QSFP28 transceiver while minimizing the risk of connectivity problems.
Why is the device not detecting the transceiver?
Check if both the transceiver ports are fully inserted and that their connectors are clean. Ensure compatibility between this device and its respective transceivers. Upgrade firmware when necessary.
Why doesn’t the connection speed meet expectations?
Ensure that the attached cable meets all transceivers’ specifications. Verify whether the network configuration supports the desired speed or not. Replace non-performing cables or modules.
What do I do if the port’s LED indicator is not lit?
Examine physical connections and confirm the proper installation of a transceiver. Troubleshoot it by testing it on other ports or devices. Change in case it cannot connect.
How can I fix intermittent connectivity problems?
Inspect fiber optic cable for kinking, water damage, etc. Clean connectors to remove dirt particles. Ensure no overheating; all sections should work properly, as per the requirements.
Guideline on how to maintain QSFP28 transceivers for optimal performance and long life.
Regular Cleaning of Optical Interfaces
It is important to frequently clean the optical ports and connectors with lint-free wipes and isopropyl alcohol. Contaminated interfaces may result in signal loss or degradation, decreasing overall network efficiency. Research shows that over 70% of fiber-related failures originate from dirty fiber connectors.
Proper Storage and Handling of QSFP28 optical transceiver modules is vital.
Firmware Updates and Monitoring
Tests performed periodically:
Backup plus redundancy strategies
Keep a compatible backup transceiver to guarantee instant replacement in times of failure. Prioritize redundancy plans so as to reduce downtime and maintain the continual operational status of the network.
Following these maintenance best practices will greatly increase the lifespan of QSFP28 transceivers while still maintaining consistent high-quality network performance.
A: In this case, a QSFP28 transceiver has been designed for the 100G Ethernet. Hence, the device can support data transmission speeds of up to 100 Gigabits per second, making it perfect for high-performance networking environments and data centers.
A: Therefore, there are various types of QSFP28 optical transceivers, which include SR4 (for short-range multimode fiber), LR4 (for long-range single-mode fiber), and CWDM4 (for extended reach). These common variants involve the 100GBASE-SR4 for MMF and 100GBASE-LR4 for SMF applications.
A: Typically, a QSFP28 SR4 transceiver utilizes an operating wavelength of about 850nm with a data transmitting capacity that might extend up to 100m over OM4 multimode fiber (MMF). It is best suited for short distances within data centers or campus networks.
A: A typical QSFP28 LR4 Transceiver operates at around 1310nm wavelength range and can send information as far as 10km through single-mode fibers (SMF). Longer connections between Data Centers or Metropolitan Area Networks are its primary use.
A: Yes, many QSFP28 transceivers are designed to be compatible with various OEM equipment like Cisco, Juniper, and Dell. Yet it is crucial to verify compatibility or choose transceivers specifically labeled as compatible with your particular network equipment.
A: Distributed Denial of Service (DDoS) mitigation is one of the best ways to ensure uninterrupted service availability on the Internet. For example, ISPs offering DDoS mitigation services typically use appliances consisting of software running on general-purpose servers equipped with special hardware for handling load balancing and high-speed packet processing.
A: Yes, while QSFP28 transceivers are usually used in data centers, they can also be utilized in a variety of 100G Ethernet applications, such as enterprise networks, telecommunications, and high-performance computing environments requiring high-bandwidth and low-latency links.
A: The connector type depends on the specific transceiver form factor and fiber optic infrastructure. For multiple fiber applications such as SR4, for example, MPO/MTP connectors are commonly used, whereas duplex LC connectors work well for single-mode fiber applications like LR4.
