The technology that we have today is incredible, and it seems to continue growing in leaps and bounds. Consequently, the demand for high-speed data communication has become more and more important, and at the center of this need are Active Optical Cables (AOCs), specifically QSFP28. AOCs facilitate effective and dependable data communication in data centers and enterprise networks. This Manual comprehensively aims to introduce readers to the biological structure of AOC cables, their construction, advantages, disadvantages, applicability and prospects, future trends and developments in the industry, whether you are a practitioner aiming to adopt best practices of infrastructure optimization or a lay person able to understand some fundamental principles. This article attempts to examine all aspects of AOCs and assist you in the understanding of how AOCs function within a network whilst enabling the incorporation of new AOC technology. Examples of the new technologies and AOCs made possible by the new technology will also be provided.
Active Optical Cables (AOCs) are also data communication type cables made of optical fibers. Unlike copper cables, AOCs are built with Optical Fiber technology which has greater bandwidth, a longer reach, and is lighter and more flexible too. It is composed of electrical mechanical to optical conversion inserts that are affixed within the plugs on both ends, which enable the transmission of electricity to be converted into an optical signal and back to electrical, which makes it possible to communicate between network equipment quickly and efficiently with minimal devices.
Active optical cables integrate advanced technology which transforms electrical to optical signals and vice versa. It leverages the use of Photodiodes and Vertical Cavity Surface Emitting Laser (VCSEL) in the connector modules for conversion. A major benefit of AOC technology allowing transferring of more than 100 Gbps which is essential in modern day data transferring centers.
An AOAC consists of several plastic or glass optical fibers surrounded by a relatively strong and light-weight cable jacket. Signals in the optical fibers allow for long-distance transfer of up to several hundred meters without the use of signal boosters. In addition, AOCs require less energy than copper cables, have low latency and minimal EMI thus making them appropriate in energy efficient data centers.
It is not uncommon to find AOCs like the 100G QSFP28 using designs that are increasingly integrated and compact for those in high-performance computer environments or cloud services. These companies require fast and accurate data transfers. As the demand for more bandwidth increases, further developments, such as PAM4 techniques and silicon photonics integration into AOC technology, are likely making promises for greater data throughput in future networks.
The processes performed at the cable end that incorporate the active transmission of data through optical fibers in active optical cables commence by converting the electrical signals. This operation is done by using vertical cavity surface emitting lasers (VCSELs) which emit light for the purpose of sending it through the fiber after receiving an electric signal. These optical signals get encoded back to electrical form by photodiodes when they reach the destination through the connection module. This type of dual conversion allows AOCs to transmit data at very high speeds whilst keeping the signal loss over long distances to a minimum and also helps in the lessening of latency and electromagnetic interference issues. This is very important for the efficient transfer of data in the current network structures.

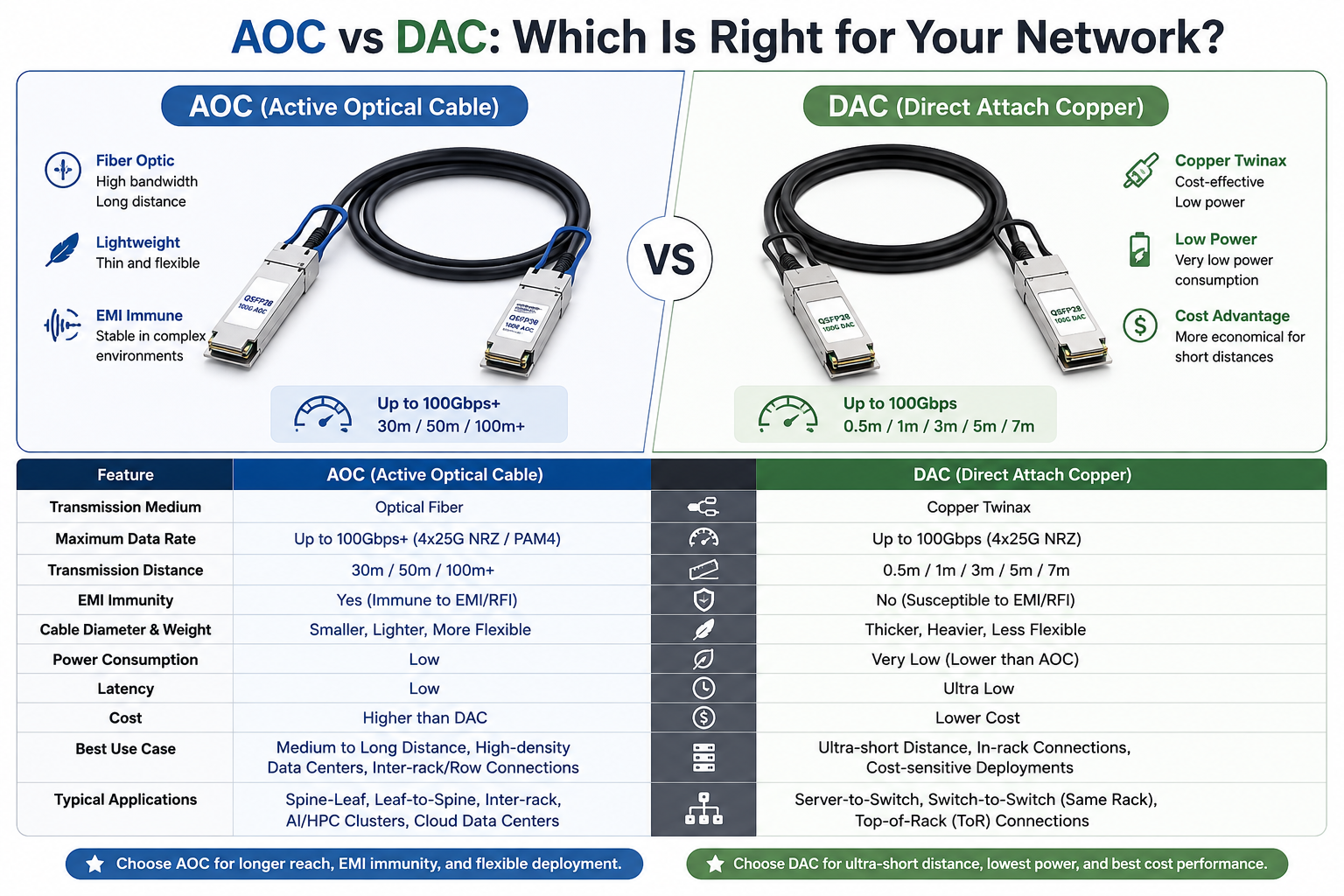

A comparison of technical parameters reveals the strengths of Active Optical Cables (AOCs) when pitted against conventional alternatives such as copper cables. Here is a detailed comparison:
Data Transmission Rate:
Transmission Distance:
Electromagnetic Interference (EMI):
Cable Weight and Flexibility:
Power Consumption:
Cost Efficiency:
The copper cable, by contrast, is suitable in terms of price for short-range networking solutions while AOC’s are therefore best suited for long-range high-speed applications in current data centers.

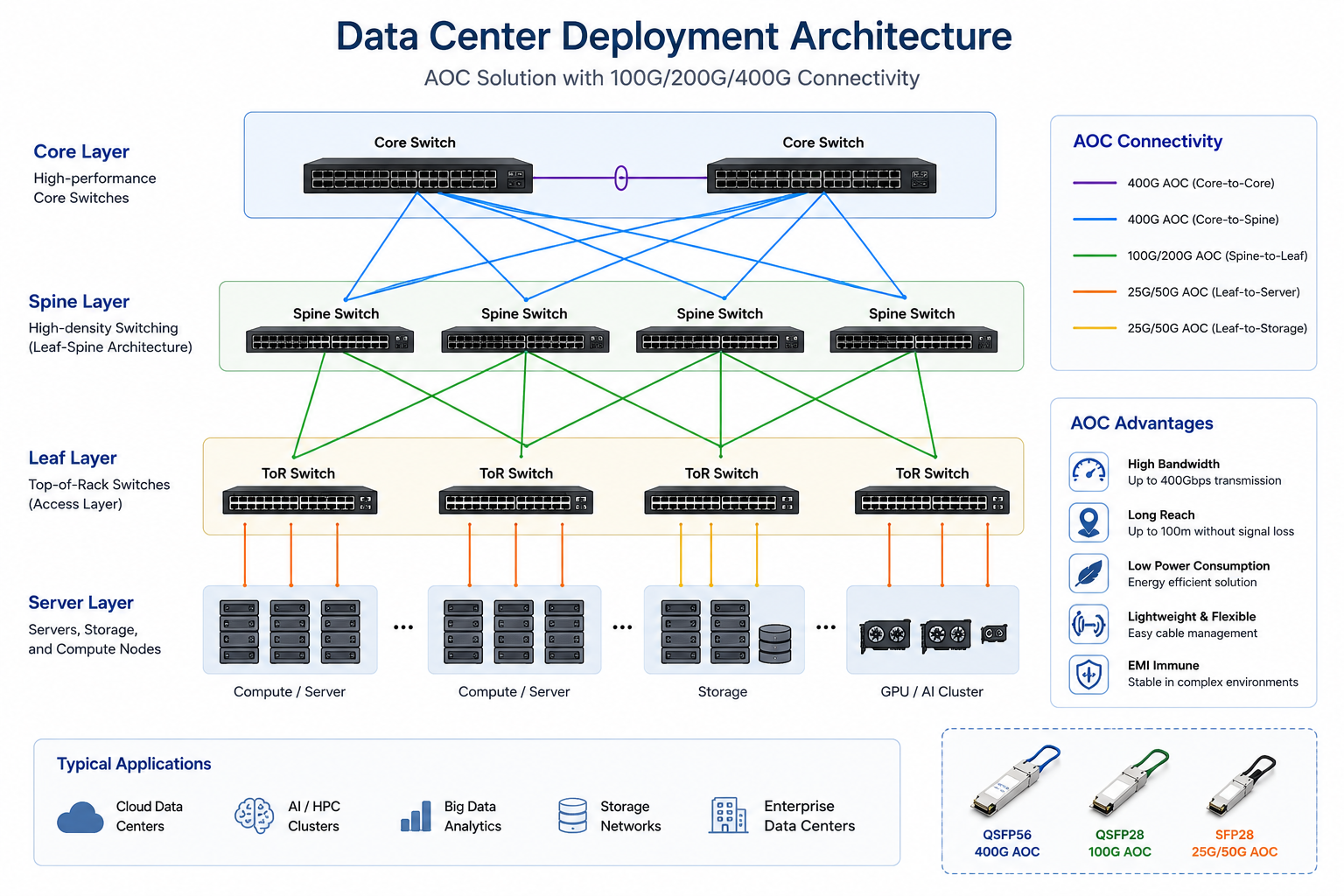

In the context of data centers, QSFP28 active optical cables (AOCs) have useful features as they provide high data rates greater than 100 Gbps for adequate distances. In such a case, there is no need to install frequent signal repeaters, which reduces the chances of failure while improving transmission. It also enhances the reliability and the performance of the system by eliminating excess signal boost. These attributes make the QSFP28 AOC’s quite ideal for massive data applications which require high transmission and stable performance for large networks.
QSFP28 Active Optical Cables offer compact compatibility with available optical transceivers and routers, ensuring backward compatibility and simplifying network evolution. Because of this compatibility, architectural changes can be implemented without extensive overhauls or disposals. With support for multiple standards and protocols, QSFP28 AOCs offer deployment ease and flexibility thus allowing simple expansion of network resources while making the most of the current investment on optical technologies. Thus, they encourage gradual shift towards advanced networking techniques in data centers.
In order to improve their performance, RSN Networks fitted this type of cable with even higher data transmission speed QSFP28 Active Optical Cables, which do not consume high levels of power and reduce complexity in the system. The deployment of Active Optical Cables is also associated with power savings and reduction of heat emission because these cable systems are less energy-consuming than conventional copper cabling systems, as current leading internet sites suggest. Apart from this, they also improve cable management, and therefore, maintenance tasks become easier because the number of cables is significantly reduced. This capability provided by the technology embedded in QSFP28 AOCs offers data centers optimized control over network bandwidth, thereby supporting growth in scaling needs without a significant increase in investment. This development enables a sustainable argument of self growth and flexibility amidst the ever fast changing environment of present day data center construction.
Direct Attach Copper (DAC) cables are usually ideal wherever used within the strata of a data center since they have a low distance and the performance remains cost-efficient. A specialized type of coaxial copper wire is referred to as the twinax cable which integrates the transceiver into the cable assembly as opposed to employing several optical SI volumes. Such integration leads to lower costs of production and consumption of energy, so Providing a DAC cable for devices located within 5 to 10 meters is reasonable.
Form factors such as SFP+, which is used for 10Gbps, QSFP+, which is used for 40Gbps, and QSFP28, which is used for 100Gbps, are able to find categorical DAC cables which affirm the bonding industry standards. Because DAC cables are passive, they do not require extra energy for the conversion of the signal, thereby making them greener than their active optical counterparts. However, these are strictly limited to short-reach data transmission since it is a known fact that copper cannot maintain signal quality over a longer distance.
Due to the gauge of the wire and the shielding incorporated in the DAC cables, their performance may strongly depend on the construction, which in turn determines parameters like signal integrity and EMI resistance. Given their low latency and low bit error rates, they can be considered effective and cost-effective solutions in high-density switch-to-switch or server-to-switch interconnections within data center racks. Otherwise impractical for long-distance connectivity, DAC cables do, however, create dramatic cost savings while allowing high-speed networking to take place in a restricted data center setting.
Active Optical Cables (AOCs) come with a number of unique advantages compared to passive cabling options, especially in situations where long distances and high data transfer rates are required. A reason why AOCs are even popular with a number of industries is the fact that they allow for high data transmission rates over large distances, often up to 100 meters, without the signal losses that are characteristic of copper cables. This is because of the optical fiber, which guarantees better signals and reduced delay in transmission. AOCs are also resistant to EMI hence can perform well in areas where there is a lot of electrical noise. Furthermore, although AOCs are relatively expensive when compared to passive cables, their enhanced performance, lighter weight, and flexibility, together with easier cable management, means that maintenance costs, as well as operational costs for large data centers and HPC networks, are low.
In my view, there are key considerations in determining which cable to use for high-performance computing, whether it be Direct Attach Copper (DAC) or Active Optical Cables (AOC). The signal of the Active Optical Cables remains well over long distances which makes them ideal for scenarios seeking longer reach while dispensing electromagnetic interference. These cables perform convincingly for data center operations that demand high bandwidth and low latency over large-distance networking. Direct Attach Copper, on the other hand, is an inexpensive cabling solution used for short-run, high-density interconnect cabling between components that require a high degree of performance, low power, and low latency. Nonetheless, the cable type to be used has a lot to do with the application, how the specific network is Architected, and the cable’s qualities, including cost, distance, and bandwidth ratio, to be able to meet the performance-escalated needs.
The role of connectors in Active Optical Cable (AOC) assemblies is of great significance because the connectors allow a reliable attachment with the network’s fibers and precise positioning of the fiber and physical interfaces on the network equipment. Precision in their design allows for the light transmission on the fiber to be more effective with low levels of insertion loss. They help to maintain the structure of the optical elements, make installation processes easier, and make maintenance easier, influencing the capacity and reliability of the network connection and its quality.
The length of the cable is one of the most important operational characteristics of Active Optical Cables (AOCs). A longer cable can connect remote points and transfer information rapidly although long cables are most useful for large data centers where both distance and the bandwidth appear important. Nevertheless, it is very important to design the length of the cable to the signal attenuation and power budget of the system in order to avoid signal loss. Therefore, it is necessary to evaluate the proper length of the cable with respect to the performance of the network in order to enhance the performance, minimize the operations’ latency, and realize high-speed applications effectively.
Breakout AOC solutions make it easier to interconnect different network devices in a data center by using a single high-speed interface, which is split into a number of separate duplex channels. This design is very useful in improving rack density and minimizing cable clutter, which is crucial for sophisticated networks. Their primary advantage is the robust and compact design, which provides longer transmission distances without any of the disadvantages of copper cables. These devices are available in 1×4, 1×8 and many other configurations to suit targeted application requirements as well as easy connection to current systems. The large-scale deployment of breakout AOCs may improve network adaptability, extensibility, and manageability in the context of dynamic data center environments.
The design of the 100G QSFP28 AOC is plenty impressive given the requirements of today’s data centers where high speed bandwidth is important. It allows data throughput levels of 40G and 100G, which includes performance in a vast field of different applications. Advanced modulation technologies coupled with the integration of optical components achieve these functions and enable accurate transmission of signals over long distances. For instance, 4 x 10G duplex lanes are used in 40G connections, while 100G connections have 4 x 25G lanes, which guarantee efficient use of bandwidth.
As for the data signal integrity, the signal loss and transmitted data quality cannot be worse than the quality of the encoding due to the use of error correction systems in the form of FEC incorporated in the QSFP28. Being able to withstand and adapt to different data speeds and long-range transmission makes it capable of dealing with complex applications that are bandwidth-demanding, mostly encountered today in high-performance computing and cloud applications. In addition, the QSFP28 AOC is in favor of multi-protocol support providing that it is able to fit within the existing networks without needing too much in terms of reconfiguration. Such design features not only allow for the enhancement of scalability but also enrich the possibility of future-proofing network investments.
The deployment of the 100G QSFP28 AOC module addresses interconnect issues for high-performance computing (HPC) environments in which the interconnect is paramount. It can easily be adopted without loss of speed and incorporates complex architectural elements that require high-speed computing. Lastly, it has error correction for data, ensuring low latencies and high efficiency in HPC systems. The module’s multi-protocols assist in expediting communication across nodes, allowing for greater levels of integration throughout the system. The absence of intervening devices enables these modules to achieve efficient routing of data signals to and fro among interlinked components, ensuring optimum performance and quick response across computationally/intensively complex tasks as required in contemporary HPC architectures that demand high speed and low latency response.
In order to provide sufficient cable ability and versatility in advanced computing systems, such cables should support multiple protocols and connectors. Connecting cables that meet common standards, such as IEEE for Ethernet or Fibre Channel for storage, will enable smooth operation with different elements within the same network. Also, the usage of modular cords makes sense since they can allow a reasonably quick upgrade or replacement of broken parts without making the economy idle for long periods. Well-known manufacturers, including Cisco and Mellanox, supply QSFP+ and QSFP28 cables, which are optimal for various applications, as well as ensuring broad compatibility with a variety of network specification requirements in order to help with the changing technologies now and in the future.
A: The high performance, speed, and distance of the AOC cables are far superior to those of the copper cables. They apply electrical to optical conversion, which assists in increasing data rates to satisfy the requirements of high-performance computing and data centers.
A: Long distances between devices can be bridged with high-speed transmission without losing the compatibility of standard network devices. They are suited for multi-lane datacom and interconnect applications.
A: What sets AOC and DAC cables apart to some extent is that, unlike DAC cables, which are basic electricity-based cables, AOCs employ electrical-to-optical conversion, which enhances the speed and distance performance of the cable.
A: Certainly, AOC cables are optimal for high-performance computing and are also perfect for long-distance applications needing fast data interconnects that are reliable and have high data rates.
A: Yes, AOC cables utilize a standard QSFP port, allowing users to improve the speed and distance of their networks without any changes to the existing system.
A: Due to the high data rates required for long-distance applications, AOC cables are deployed in data centers, HPC, and telecommunication infrastructures. They are also used in breakout cable systems for multiple outputs from single sources.
A: An AOC cable replaces the metallic transmission media with an optical communication medium, allowing for greater data transmission rates and distances than conventional copper wire cables. This does not integrate incompatibility with standard cable ends to enhance speed.
A: A breakout cable is used in this case to make reference to an active optical cable assembly that breaks out a high-speed signal into several lower-speed signals. This is useful for networks like 40G QSFP to 10G SCP, which improve the deployment and configuration of networks.
A: Now that data rates are increasing and the demand for data centers is also on the rise, AOC cables have become fundamental because they are able to support the needed bandwidth as well as transmission distances. They have made a standard place in modern data centers because they can transmit at the required data rates over extended distances.
