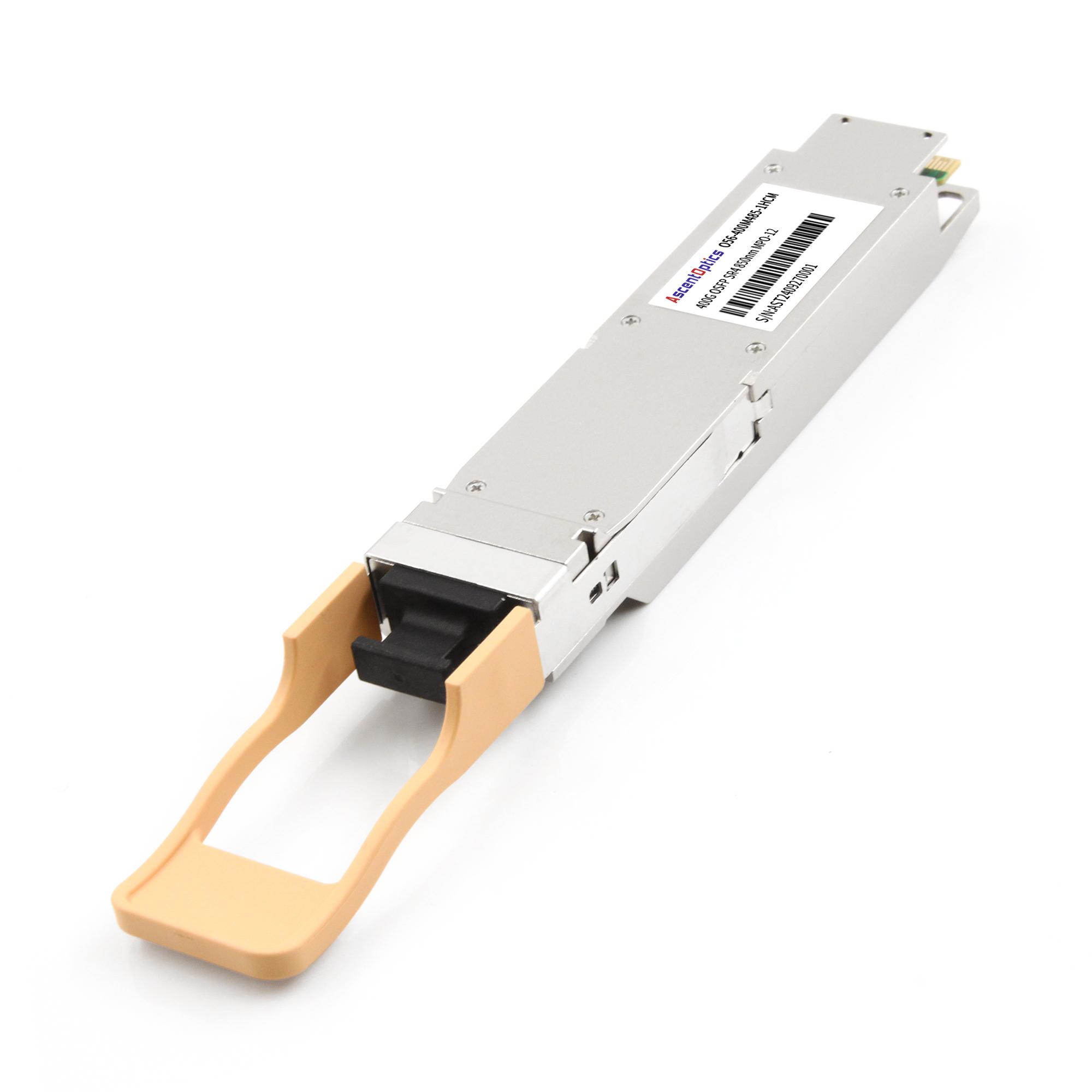

400G OSFP 4x100G DR4+ / FR (XDR4) 2KM MPO-12 SMF Transceivers
400G OSFP 4x100G DR4+ / FR (XDR4) 2KM MPO-12 SMF Transceivers
400G OSFP 4x100G DR4+ / FR (XDR4) 2KM MPO-12 SMF Transceivers
400G OSFP 4x100G DR4+ / FR (XDR4) 2KM MPO-12 SMF Transceivers
400G OSFP 4x100G DR4+ / FR (XDR4) 2KM MPO-12 SMF Transceivers
400G OSFP 4x100G DR4+ / FR (XDR4) 2KM MPO-12 SMF Transceivers

400G OSFP

400G OSFP 4x100G DR4+ / FR (XDR4) 2KM MPO-12 SMF Transceivers

Ascent Optics’ OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 2km single mode fiber. The module has 8 independent electrical input/output channels at host side with data rate of 53.125Gbps per channel. The integrated GearBox in module converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 425Gbp/s. The four transmitter/receiver units operate on 1310nm wavelengths. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with OSFP MSA.

原产地 : 中国

交货时间 : 咨询客户经理

尺寸（长x宽x高） : 144*22.88*13

净重 : 0.058公斤

证书:

证书 证书 证书 证书 证书 证书 证书

P/N: OSP-400S431-02CM

添加报价
产品详情 主要特点 应用 资料下载（PDF）
获取报价 返回产品列表
产品详情
产品型号 OSP-400S431-02CM 封装 OSFP
速率 4×100G 400GbE 距离 2KM
波长 1310nm 工作温度 0 至 70°C（32 至 158°F）
接口 MTP/MPO-12 电压 3.3V
电缆类型 单模光纤 数字诊断功能 是的
变送器类型 1310nm 发光层 接收器类型 PIN
发射功率 -2.4~+4.0dBm 接收灵敏度 <-6.4dBm
协议 IEEE 802.3bs、OSFP MSA 保修单 3年
主要特点
Supports 425Gbps Up to 2km over SMF MPO-12 connector 8x53.125GBd (PAM4) electrical interface OSFP MSA compliant PIN and TIA array on the receiver side Power dissipation < 10W Case temperature range: 0°C to 70°C(commercial) Safety Certification: TUV/UL/FDA*1 RoHS Compliant
应用
Data center networks 4 x 100G-DR4+ applications
