SFP+ Module: Everything You Need to Know

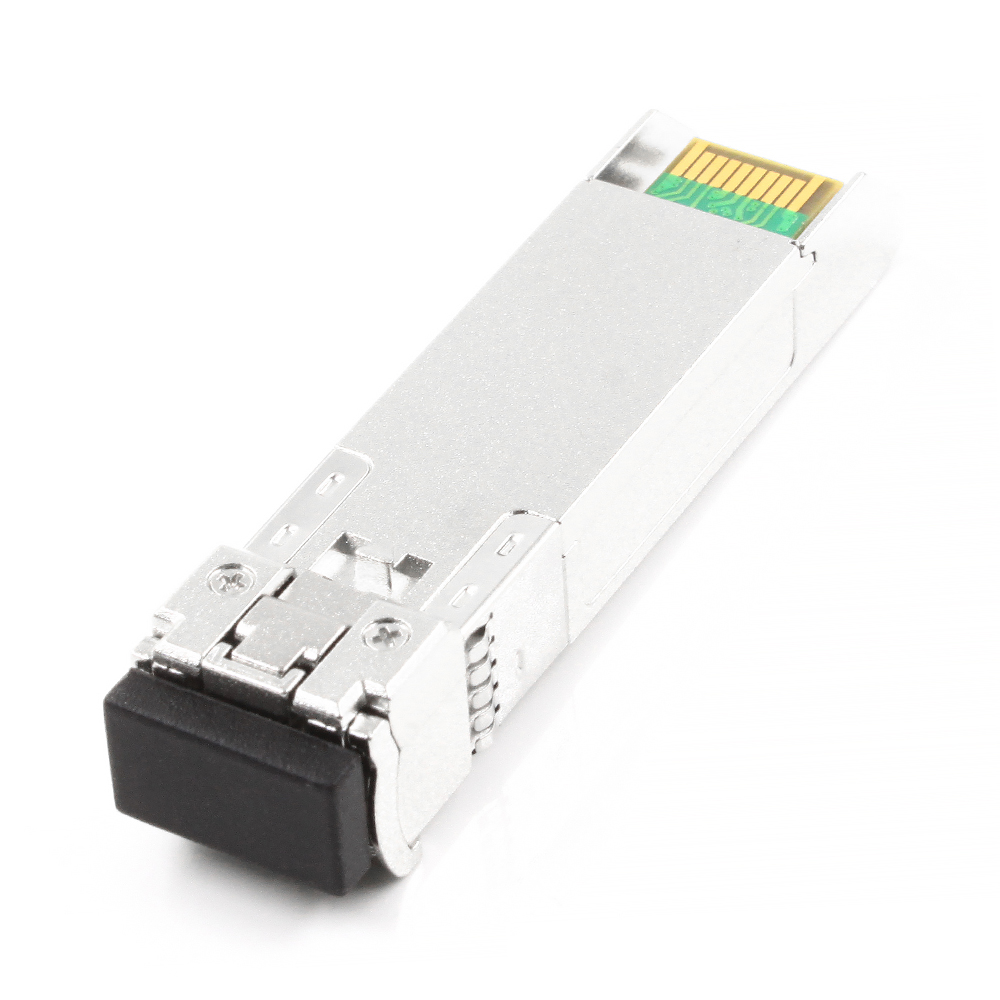

What is an SFP+ Module?

What is an SFP+ Module?

SFP+ module stands for Small Form-factor Pluggable Plus module, which is a compact, hot-pluggable, and optical transceiver module used in various communication applications. The SFP+ module is designed to transmit and receive data through high-speed optical fibers over short distances. It is a small, low-power, and cost-effective solution for high-speed interconnects in networking devices.

Introduction to SFP+ Modules

 The basic principles of module block diagram
The basic principles of module block diagram

The SFP+ module is a standard module that operates at a faster data rate than the SFP module, which is its predecessor. The SFP+ module has a data rate of up to 10 Gbps and supports different connector types such as LC, SC, and MPO. The SFP+ module utilizes laser technology to transmit data, and it has a range of up to 80 km, depending on the type of fiber used. It also has low power consumption, making it efficient for data centers and other high-performance systems.

Key Features of SFP+ Modules

SFP+ modules have multiple key features, including their data rates, connector types, distance supports, and power consumption. The data rate of an SFP+ module can reach up to 10 Gbps, which is ideal for high-speed data transmission. The connector types of SFP+ modules include LC, SC, and MT-RJ connectors that are widely used in optical fiber networks.  SFP+ modules support different distance ranges, from short-range to long-distance up to 80 km with single-mode fibers. SFP+ modules consume low power, making them cost-effective and energy-efficient in data center and telecom equipment.

Benefits of Using SFP+ Modules

The SFP+ module provides numerous benefits in practical scenarios. The module can upgrade the network bandwidths without changing the infrastructure compared to traditional copper cabling.  It provides higher data rates, longer distances, and greater capacity, making it suitable for high-performance computing, storage area networks, and data centers applications. Additionally, SFP+ modules are easy to install and configure, and they require less space than traditional modules.

Comparison between SFP and SFP+ Modules

For comparison purposes, SFP+ modules offer better performance with larger data rates and longer links than SFP modules. SFP+ modules have a higher data rate of 10 Gbps, whereas SFP modules have data rates of up to 4 Gbps. SFP+ modules can provide a longer link distance than SFP modules, up to 80 km. Another advantage of SFP+ modules is that they are backward compatible with SFP modules, which means that users can use both modules with their devices.

How to Install an SFP+ Module?

Installing an SFP+ module is a straightforward process that requires only a few tools and safety considerations. Before installing, ensure the device is turned off and all cables are disconnected.  Insert the SFP+ module into the appropriate module slot, lining up the notch correctly and gently push the module until it clicks into place. Finally, reconnect the cables and power on the device. If the device detects the SFP+ module, it will notify you that the connection is established successfully.

Types of SFP+ Modules

Types of SFP+ Modules

Single-Mode SFP+ Modules

Single-mode SFP+ modules are designed to transmit data over long distances, up to 10 kilometers or more. This module type uses a single-mode fiber optic cable with a narrower core diameter and a higher bandwidth than multimode cables. The advantage of using single-mode SFP+ modules is that they allow for high-speed data transmission with low attenuation, making them suitable for large data centers or telecommunications companies. However, they are also more expensive than multimode SFP+ modules and require careful handling during installation.

Multimode SFP+ Modules

Multimode SFP+ modules are designed to transmit data over shorter distances, up to 550 meters, and are typically used in smaller data centers or office environments. This module type uses multimode fiber optic cables, which have a wider core diameter and a lower bandwidth than single-mode cables. Multimode SFP+ modules are cheaper and easier to install than single-mode SFP+ modules, but they are not suitable for transmitting data over long distances. They are also more susceptible to attenuation, which can degrade the quality of the signal.

Cisco SFP+ Modules

Cisco SFP+ modules are developed and manufactured by Cisco Systems, a leading provider of networking equipment. These modules are compatible with Cisco switches, routers, and servers, and are designed to provide high-speed data transmission and reliable performance. Cisco SFP+ modules are available in both single-mode and multimode versions, and are compliant with the Multi-Source Agreement (MSA), which ensures interoperability between different vendors’ products.

MSA-Compliant SFP+ Modules

MSA-compliant SFP+ modules are developed and manufactured by different companies, which comply with the MSA standards. The MSA is a consortium formed by industry leaders to ensure interoperability between different vendors’ products. MSA-compliant SFP+ modules are available in both single-mode and multimode versions and are typically cheaper than branded modules from major networking equipment manufacturers.

Digital Diagnostics Monitoring in SFP+ Modules

Digital Diagnostics Monitoring (DDM) is a feature available in some SFP+ modules that provides real-time monitoring of critical parameters, such as temperature, voltage, and power consumption. This feature can help network administrators troubleshoot potential issues before they cause downtime or network disruptions. DDM is also useful for optimizing network performance by providing information on cable length, signal strength, and other factors. However, not all SFP+ modules support DDM, and it may add to the cost of the module.

Optical Connectivity Options for SFP+ Modules

Optical Connectivity Options for SFP+ Modules

Below are some of the most commonly used optical connectivity options for SFP+ modules.

10GBASE-LR SFP+ Modules

The 10GBASE-LR SFP+ module, also known as 10GA05, is a single-mode fiber optic transceiver designed for long-range data transmission. Its long-range capabilities make it perfect for data communications over industrial applications, metro networks, and even some WAN connections. The 10GBASE-LR SFP+ module can reach transmission distances of up to 10km when the 1310nm wavelengths are used.

10GBASE-SR SFP+ Modules

The 10GBASE-SR SFP+ module, also known as 10GA03, is a multi-mode fiber optic transceiver designed for short-range data transmission. Its wavelength range of 850nm makes it perfect for data communications over data center applications. The 10GBASE-SR SFP+ module offers a transmission distance of up to 300m when we use 50/125μm fibers.

Active Optical Cables (AOC) for SFP+ Modules

Module shell machine size map

An active optical cable (AOC) for SFP+ module is a fiber optic cable with already integrated transceivers. The transceivers convert electrical signals to optical signals and provide high-speed communication links. AOCs are most commonly used in data centers, high-performance computing, and also cloud computing. They offer long-distance transmission while still providing high-speed data transfer, low latency, and low power consumption.

Direct Attach Copper (DAC) Cables for SFP+ Modules

Direct Attach Copper (DAC) cables offer an alternative to the fiber optics modules by using copper cable instead. DAC cables are well-suited for data center applications with distances less than 7m. They are cost-effective, easy to install, and don’t require additional power supply or cooling. DAC cables are good options when there are distance limitations and there is a need for high-speed transmission.

40km Reach SFP+ Modules

40km reach SFP+ modules, also known as 10GBASE-ER, are designed for long-distance data transmission. They are equipped with single-mode fiber optic transceivers with a large bandwidth capacity. The 40km reach SFP+ module can transmit data signals for up to 40km, making it perfect for long-distance applications like metropolitan area networks (MANs) and data center interconnects.

In conclusion, choosing the right optical connectivity options for SFP+ modules can be complex, given the different types of connectivity options available that vary in their specifications, data transfer, performance, and cost. The above five options are some of the most common optical connectivity options for SFP+ modules. Finally, before making a choice, evaluating factors like cost, data-transfer needs, distances, and the application’s specific requirements is important.

Future ReadingWhat is the difference between single-mode fiber and multi-mode fiber?

Choosing the Right SFP+ Module

Choosing the Right SFP+ Module

Compatibility with Network Equipment

Before purchasing an SFP+ module, compatibility should be at the forefront of your mind. Not all modules are created equal, and selecting an incompatible module can have detrimental effects on your network’s performance. It’s crucial to ensure that your chosen module is compatible with your networking equipment, including routers and switches. As such, you must identify the particular make and model of your networking equipment and carefully cross-check them with the SFP+ module’s specifications before making a purchase.

Optical Output Power and Link Length

The optical output power and link length of an SFP+ module are critical factors to consider when selecting the right one for your network. Optical output power is the measure of the module’s transmitted optical power, and it’s essential to select a module with an output power that meets your networking product’s needs. Similarly, link length refers to the distance over which data can travel with minimal signal loss and distortion. It’s vital to select an SFP+ module that can transmit data over the required length to ensure uninterrupted and reliable network connectivity.

Power Consumption of SFP+ Modules

Power consumption of SFP+ modules may not be the most glamorous factor to consider, but it’s essential to keeping your network running smoothly. Different SFP+ modules consume different amounts of power, with some being more energy-efficient than others. Before purchasing a module, it’s essential to evaluate your network’s power consumption requirements and select a module that will help conserve energy while maintaining outstanding network performance.

Reliable 10 Gigabit Ethernet Connectivity with SFP+ Modules

Ultimately, the right SFP+ module will ensure reliable 10 Gigabit Ethernet connectivity, which is critical for enhancing network efficiency and effectiveness. The ability to send and receive data swiftly and consistently means no lag time, which translates to more productive workflows. Opting for a high-quality SFP+ module means you can achieve a fast, dependable, and efficient network connection that keeps your business competitive.

How to Troubleshoot SFP+ Module Issues?

How to Troubleshoot SFP+ Module Issues?

Troubleshooting SFP+ module issues refers to the process of identifying, analyzing, and solving problems with these modules. This guide will provide you with a comprehensive understanding of how to troubleshoot SFP+ module issues.

Common Problems with SFP+ Modules

SFP+ modules can experience various issues that can affect their performance. Some of the common problems include poor signal quality, compatibility issues, incorrect firmware versions, damaged fiber connectors, and dirty or contaminated components. Poor signal quality can result from overlong or over-short cables, incorrect temperature ranges, or electromagnetic interference. Compatibility issues occur when modules from different manufacturers or with different specifications are used, leading to incompatibility between devices. Incorrect firmware versions cause inconsistencies between devices, which can lead to module failure. Damaged or dirty fiber connectors create signal interruptions or distortions, affecting the overall network performance.

Steps to Troubleshoot SFP+ Module Issues

It is essential to follow the correct procedures when troubleshooting SFP+ module issues. First, verify the compatibility of the module with the device by matching the manufacturer’s specifications. Next, ensure that the firmware versions of both devices match each other to avoid any inconsistencies. Test the SFP+ module using specialized diagnostic tools, such as optical power meters, to check for signal quality and any faults. Clean the module and the fiber connectors regularly to avoid contamination that can impair the signal performance. Lastly, try swapping the module with a spare one to see if the problem persists.

Replacing Faulty SFP+ Modules

If all of the above steps fail to resolve the issue, it is likely that the SFP+ module is faulty and needs to be replaced. First, remove the module from the device while following the manufacturer’s guidelines for the proper removal procedure. Be careful not to damage the module or the socket during the removal process. Next, inspect the module and its components for any physical damage or signs of contamination. Dispose of the faulty SFP+ module following the manufacturer’s recommendations, and install a new module following the manufacturer’s guidelines.

Importance of Cleaning and Maintaining SFP+ Modules

Regular cleaning and maintenance of SFP+ modules ensure optimal performance and prolong their lifespan. Accumulated dust, oil, and other contaminants can impair the signal quality and shorten the module lifespan. Cleaning should only be done using specialized cleaning tools and solutions to avoid any damage to the components of the module. The frequency of cleaning depends on the usage and the environment in which it operates. It is advisable to follow the manufacturer’s guidelines for the best cleaning practices.

Verifying Compatibility and Firmware Updates

It is essential to verify the compatibility of SFP+ modules with the devices and firmware updates regularly. Mismatched compatibility and outdated firmware versions can cause inconsistencies, resulting in module failure. Compatibility verification should be done by checking the manufacturer’s specifications for both devices and modules before installation. Firmware updates should follow the manufacturer’s guidelines to ensure consistency between devices.

Future Reading10G DAC High Speed Cable VS 10G AOC Active Optical Cable: Who is better?

Frequently Asked Questions

Frequently Asked Questions

Q: How does an SFP+ module work?

A: An SFP+ module is inserted into a compatible network device or switch, providing a connection between the device and a fiber optic or copper network cable. It converts electrical signals into optical signals for transmission over long distances, or vice versa.

Q: What are the different types of SFP+ modules available?

A: There are various types of SFP+ modules available, including those for different types of optical fiber (single-mode and multi-mode), different data rates (10G, 40G, etc.), and different network protocols (Ethernet, Fibre Channel, etc.).

Q: What is the purpose of an SFP+ module?

A: The purpose of an SFP+ module is to provide high-speed, small form factor connectivity options for data transmission over optical fiber or copper cables. It enables devices to connect to networks with 10 Gigabit Ethernet connectivity.

Q: What are the advantages of using an SFP+ module?

A: Some advantages of using SFP+ modules include their small form factor, hot-swappable capability, flexibility in choosing different types of optical transceivers, and the ability to increase port density in network equipment.

Q: What is Digital Diagnostics Monitoring (DDM) in an SFP+ module?

A: Digital Diagnostics Monitoring, also known as DDM, is a feature available in some SFP+ modules that allows for real-time monitoring of critical parameters of the module, such as optical input power, laser bias current, and transceiver supply voltage.

Q: What is the difference between SFP and SFP+?

A: SFP is a previous generation module that supports up to 1 Gigabit Ethernet connectivity, while SFP+ supports up to 10 Gigabit Ethernet connectivity. SFP+ modules are physically the same size as SFP modules but provide higher data rates.

Q: Can an SFP+ module work with different fiber types?

A: Yes, SFP+ modules are available for single-mode and multi-mode fibers. Single-mode SFP+ modules are used for longer distances, while multi-mode SFP+ modules are used for shorter distances.

Q: Can SFP+ modules be used in other network equipment?

A: Yes, SFP+ modules can be used in various network devices, such as switches, routers, and network interface cards, as long as the device has an SFP+ compatible slot.

Q: What is the maximum distance an SFP+ module can transmit data?

A: The maximum distance an SFP+ module can transmit data depends on various factors, including the type of fiber (single-mode or multi-mode) and the specific module. Single-mode SFP+ modules can transmit data over longer distances, up to 10 kilometers or more.
